21.5 inch Industrial Fully Waterproof Touch Screen Monitor
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express
- Port:
- Shenzhen, Hong Kong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ROHS, FCC, CE |
| Transportation: | Ocean,Air,Express |
| Port: | Shenzhen,Hong Kong |
The Fully waterproof monitor provided by our company have IP67-level functions, which are suitable for various outdoor operations and are highly adaptable to the weather, because we have been producing industrial-grade Fully waterproof monitor. Its sturdiness and continuity of work are higher than ordinary monitors on the market. In addition to being a monitor, we can also install Android, Windows, and Linux systems.
The IP67 rating means that the Fully waterproof monitor has Class 6 dust resistance and Class 7 waterproof function. Specifically, IP67-certified equipment can prevent dust from entering (to prevent contact and dust penetration as a whole), it can also prevent short-term immersion (anti-immersion), and can have up to 30 minutes of anti-immersion energy at a depth of 1 Meters of water.

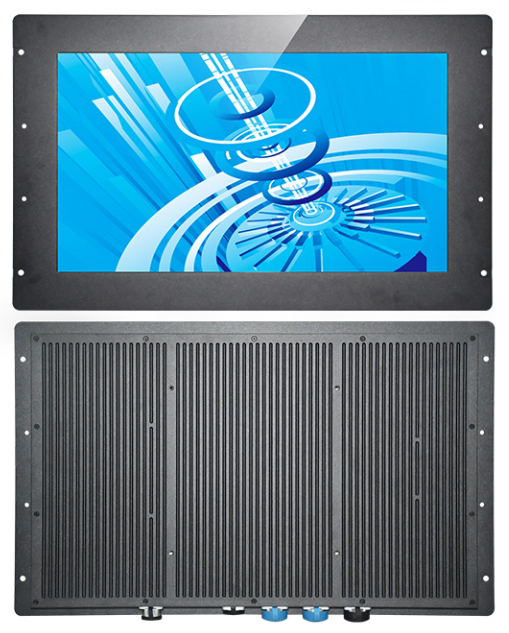

Waterproof Touch Screen Monitor
21.5" IP67 computer monitor windows system
Industrial all in one, TFT ips panel, 10 points capacitive touch; Support rack mount/VESA mount/embedded mount
waterproof monitor
Key Features:
—— 21.5” Full HD 1920*1080 resolution TFT LCD screen.
Integrated with low power Intel® Core™ i5-4210U Processor, 2.10 GHz,10W
—— Fanless design.
—— 4GB DDR2 RAM.
—— 120GB SSD.
—— 10 Points Capacitance Touch Screen
—— Tempered glass for front panel, rugged and low profile design.
—— Stainless steel front bezel.
—— Wide operational temperature range, -10°C to +50°C.
—— RoHS compliant.
waterproof monitor, waterproof computer monitors, outdoor waterproof monitors, Waterproof Touch Screen Monitor, waterproof displays, industrial waterproof monitor
Specifications
Item No.
HSPC-2155-ATPC
LCD Screen
Size
21.5’
Aspect Ratio
16:09
Pixel Pitch
0.24795*0.24795 mm
Resolution
1920*1080 (WSUVGA)
View Angle
170° (H)/160° (V)
Brightness
450/1000 nits (Optional)
Contrast Ratio
1500:01:00
Colors
16.7M(8Bit)
Touch Screen
Screen
10 point Capacitance Touch
Active Area
479.84*271.30 mm
Viewing Area
477.60*269.20 mm
Screen Thickness
3. 95mm
Resolution
16384*9600
Response Time
Below 10ms
Light Transmission
>80%
Touch Media
Finger
Durability
More than 10,000,000 single touch
MTBF
>60,000 hours
PC System
Intel® Core™ i5-4210U Processor, 2.10 GHz
Quad Core Quad thread 2.1GHz (Optional)
2M L2 cache
35W low TDP
Chipset
Intel® Core™ i5-4210U Processor, 2.10 GHz
Memory
4GB DDR3L
I/O Interface
2 *USB 2.0, 2 *USB 3.0, 2*(RS232)
1*4PIN 12VCD
2*FAN
1*MINI-SATA
1*MINI-PCIE
1*SATA
1*SIM
1*LVDS/eDP
Sound Card
ALC662 chip, 6-channel sound card,front Audio pin
Hardware Detect
ITE8712, CPU detect Fan, system fan,voltage, temperature, etc.
Net Card
10~100~1000M adaptive network card
H.D.D
SSD 32GB / 64GB / 128 GB
Power requirement
+12V,24V
Rear Panel I/O
1*RJ-45
2*2.0USB, 2*3.0USB ports
1*DC (in)
1*HDMI AUDIO-OUT
AUDIO-MIC
s Speaker
Power: 5W*2
Quality
Fire-resistance
UL-94HB
Chemical-resistance
Active area of Touch is resistant for acetone, toluene, butanone, acetylacetone, methanol, acetic acid, gas, coal oil, and Vinegar.
Certificate
RoHS, FCC (Part 15) CE (EN55022 and EN55024)
Environments
Temperature
Operation: -10°C ~ 60°C
Storage: -20°C ~ 70°C
Humidity
Operation:10%~90% RH
Storage: 5%~95% RH
Power Supply
Power Input
12/24V DC (Optional)
Power Consumption
Approx. 65 Watts
Mount
VESA mount
Accessories
AC Adapter, Power Cord
Approval
Application
Waterproof Touch Screen Monitor
Waterproof Touch Screen Monitor
