Aluminum Case Industrial Waterproof Touch Screen Monitor
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ROHS, FCC, CE |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
IP65 is essential for wet and dusty industrial applications. Advantech ids-3300 front panel IP65 touch screen is a water-proof, dust-proof and moisture-proof solution, which is very suitable for food and beverage and outdoor industrial applications. It has IP65 protection rating, ultra-thin design (42mm depth) and four rounded corners to provide the best protection.
industrial all in one
Panel
Magnesium alloy die-casting a forming, coating industry calx high-temperature baking paint processing, panel reaches IP65 protection class
industrial computers

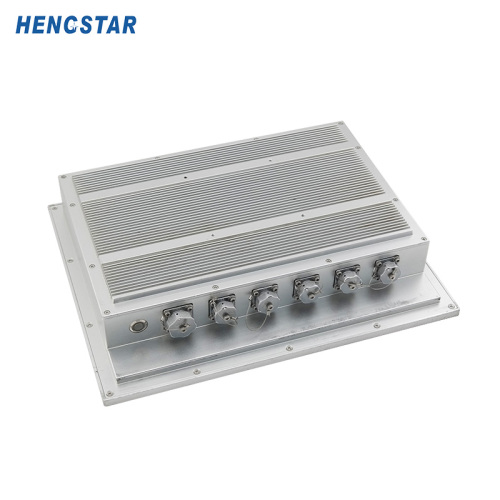

Box
Full aluminium coating industrial metal gray high temperature of the lacquer that bake, beautiful and lightweight, good heat dissipation performance, ventilation, in order to achieve good dustproof and waterproof effect.
industrial all in one
High performance industrial grade driver board
Intel Cedar View + NM10 Two-Chip Solution
Integration of Intel Intel®Atom™ N2600，1.66GHz, dual core processor
2G to 4 GB DDR3 1066/800 SDRAM, 1 SO-DIMM
Onboard, PCI-E Gigabit Ethernet LAN
6 COM, 6 USB, 2 SATA, 2 Mini PCI-E, 3.5 Inch
industrial display
Product Specification
|
Product Name |
Fully IP65 Grade Monitor |
||
|
LCD panel |
Size/Aspect ratio |
6.5” / 15” / 17” / 19” |
|
|
Pixel numbers (H*V) |
640*480 (6.5”) 1024*768 (15”) 1280*1024 (17” / 19”) |
||
|
Brightness (cd/m2) |
700 (6.5”) 350 (19”) |
||
|
Controller board |
Signal |
6.5” |
VGA |
|
15” / 17” |
D-Sub15 pin*1, DVI |
||
|
19” |
D-Sub15 pin*1 |
||
|
OSD Control |
Menu/Select, Auto, Up, Down, Power |
||
|
Power plug |
12 VDC jack (15” / 17” / 19”) |
||
|
Operating condition |
Temperature |
6.5” |
-30°C to 80°C (Operating) |
|
15” / 17” / 19” |
0°C to 50°C (Operating) |
||
|
Humidity |
6.5” |
5% RH to 90% RH (Operating) |
|
|
15” / 17” / 19” |
10% RH to 90% RH (Operating) |
||
|
Power |
Input Voltage |
6.5” |
9-36V DC |
|
15” / 17” |
12V DC,(AC adapter,100~240VAC,50/60Hz) |
||
|
19” |
100~240V AC,50/60Hz |
||
|
Operation |
10 W (6.5”) |
||
|
Mount/installation |
VESA mount:75*75mm |
||
