23.1 inch Stretched Bar LCD Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 -15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 500 |
| Supply Ability: | 10000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ROHS, FCC, CE |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Digital Signage Monitor, Outdoor Digital Signage, Stretched Display. The strip LCD screen has a long life span of energy saving. The imported aluminum substrate is used, and its ability to absorb and dissipate heat makes it possible to minimize the light decay of LED lamps. The influence of the heat of the backlight on the LCD substrate is minimized to achieve energy saving, long life, effective energy saving, and lighter and thinner products.
It can be intelligently controlled. The high-brightness bar LCD screen is equipped with a light-sensitive automatic controller, which automatically adjusts the screen brightness according to the surrounding environment, so that the screen image can achieve the best visual effect, and also achieve energy saving and extremely low aging of product components degree. With ultra-high contrast, the strip LCD screen has ultra-high dynamic contrast, the color display is more saturated and gorgeous, the visual effect is more three-dimensional and realistic, ultra-fast response time, unique black field insertion and backlight scanning technology enhance the dynamic picture Visual performance. With wide temperature working characteristics, the strip-shaped LCD screen can meet fast start-up and clear image display in low-temperature environments, and operates around the clock under natural ambient temperature, which is very suitable for outdoor display needs.
Product Specification：
|
System |
CPU |
RK3188,Quad-core cortex A9,1.6G |
|
RAM |
1GB |
|
|
Internal memory |
8GB |
|
|
Operation system |
Android 4.4/5.1 |
|
|
Touch screen |
NAT |
|
|
Display |
Panel |
23.1"LCD IPS panel |
|
Max Resolution |
1920*540 |
|
|
Active area |
476.64(H)x89.37mm(V) |
|
|
Display mode |
Normally black ,IPS |
|
|
Viewing angle |
89/89/89/89(L/R/U/D) |
|
|
Contrast ratio |
1200:01:00 |
|
|
Luminance |
300cd/m2 |
|
|
Aspect Ratio |
16:3 |
|
|
Network |
WiFi |
802.11b/g/n |
|
Ethernet |
100M/1000M ethernet |
|
|
Buletooth |
Bluetooth 4.0 |
|
|
Interface |
Card slot |
SD card |
|
USB |
USB Host |
|
|
Micro USB |
Micro USB OTG |
|
|
USB |
USB for serial |
|
|
RJ45 with POE |
RJ45 |
|
|
Power jack |
DC power input |
|
|
Earphone |
3.5mm earphone + Micphone |
|
|
Media play |
Video format |
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K |
|
Audio format |
MP3/WMA/AAC etc. |
|
|
Photo |
jpeg |
|
|
VESA |
244mm |
|
|
Speaker |
2*1.5W |
|
|
Working temp |
0--40degree |
|
|
Certificates |
CE/FCC/RoHS |
|
|
Language |
Multi-language |
|
|
Accessories |
Adapter |
Adapter,12V/3A |
|
User manual |
yes |

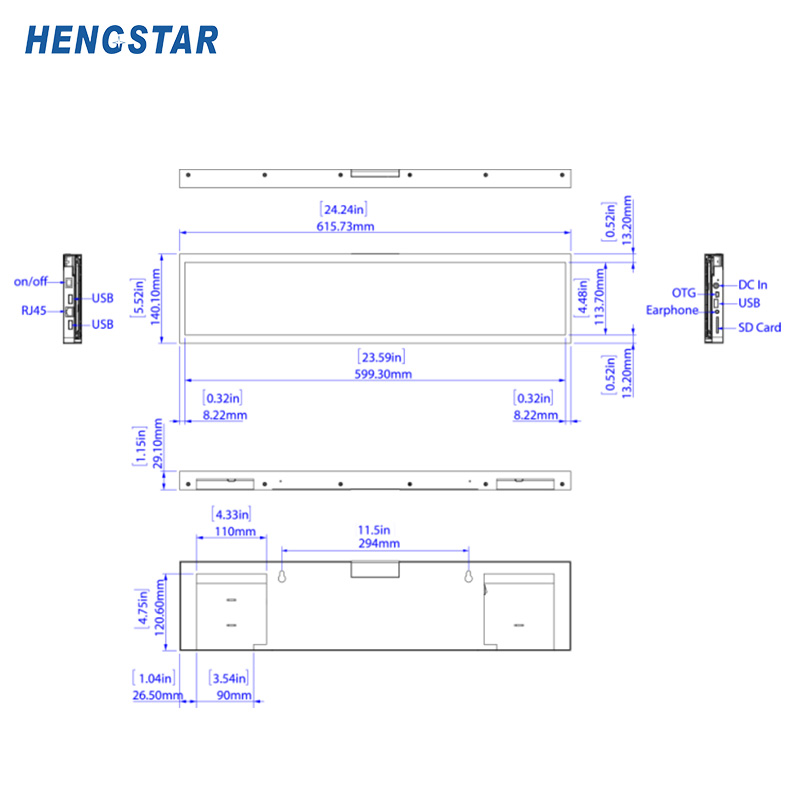

Mechanical Drawing:
Digital Signage Monitor, Outdoor Digital Signage, Stretched Display
