Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 500 |
| Supply Ability: | 10000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ROHS, FCC, CE |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Hengstar Interactive Whiteboard Infrared /PCPA touch All in One is with TV, computer, touch screen kit and audio inside. The thickness of whole machine is only 10.7cm. The advantage of our all in one pc monitor is touch screen kit on the front panel and drawer-style PC will be maintained easily.
Interactive Whiteboard Based on Windows 7 and windows 8 system, it can switch single touch and multi touch freely, No matter if you are High-end factory, no matter if you are normal school, no matter if you are government or radio station, all can use this machine. It is also used for family users; there are many kinds of installation methods, it looks nice with wall-mounted method; it’s moveable with mobile stand. Interactive Whiteboard Interactive Whiteboard Interactive Whiteboard Interactive Whiteboard Interactive Whiteboard
Touch Screen Whiteboard,Smart Whiteboard,Digital Whiteboard,Touch Screen Whiteboard,Smart Whiteboard
Smart technology
Smart Teaching / Conference Tablet
smart monitor
Key Features：
1. Finger touch.,
2. Multi touch
3. HDMI -High-Definition Multimedia Interface keep the original high-resolution voice and image signals transmission
4. Flexible Media Content-provide easy access for quick media changes and service
5. Drawer-type PC box
6. Different color for choose
7. Wireless(Optional)
One machine is multi-purpose, meet different occasions of teaching conference
smart monitor
Infrared touch, accurate and fast
Infrared touch, accurate and fast, intelligent writing, one comment,
finger can be quickly erased,Support office software such as pictures, PPT / Word / PDF.
smart whiteboard
Product Specification
|
Model No. |
HSIM-8606 |
|
|
LCD panel |
Size/Aspect ratio |
86’’/ 16:10 |
|
Pixel numbers |
3840(H)*2160(V) |
|
|
Brightness |
450 cd/m2 |
|
|
Contrast Ratio |
1200:1 |
|
|
Viewing Angle |
178° (H)/178° (V) |
|
|
Colors |
16.7 M |
|
|
Touch Parameters
|
Touch Active Area |
1892*1066 |
|
Touch Technology |
Infrared touch technology |
|
|
Touch mode |
10 points touch |
|
|
Resolution |
32767*32767 |
|
|
Response time |
1) First dot (Click)8ms,continuosly(writing)3ms; 2) Multi-point click: first dot (Click)8ms, continuosly(writing)8ms; 3) Mouse click: first dot (Click)8ms, continuosly(writing)8ms; |
|
|
Cursor Speed |
Up to 300dot/s multipoint, mouse click :125dot/s |
|
|
Operating Life |
≥60,000,000times to click |
|
|
Power |
USB Power Supply(4.6~5V DC) |
|
|
Power Consumption |
≤1w |
|
|
Operation System |
Win7/Win8,Android,Mac, Linux |
|
|
Calibration |
HD devices standard, accord with win7 multi-touch protocol, no need special software to calibrate, just use tablet pc setting to finish the calibration |
|
|
Anti-light decay function |
Anti-light decay circuits to prevent the performance degradation Caused by long working hours |
|
|
LED Test software |
Supply touch screen LED test software to test the function of each couple of the LED Lights and the drawing functions |
|
|
Anti-light interference function |
Can work properly in direct sunlight condition |
|
|
TV Parameters |
TV Standard |
NTSC-M/N,PAL-BG/DK/I/H,SECAM L/L |
|
Multimedia Formats |
MPEG1/MPEG2/,MPEG4,H64,RM,RMVB,MOV,MJPEG |
|
|
USB2.0 Multimedia Playback |
Video/Audio/Picture |
|
|
USB System Upgrading Online |
Support USB Online Upgrading Function |
|
|
Resolution |
Max.1080P |
|
|
HDMI V1.4 |
720P/1080P |
|
|
Scanning Format |
Support 1080i video cnsscross DAS(Dynamic Adaptive Scan) |
|
|
Sound Control |
Automatic Sound Standard detection support for balance adjustment and surround |
|
|
Sound Output |
2x10W |
|
|
In/Out-put terminals |
USB Multimedia Input port |
1-Line |
|
Touchscreen port |
1-Line USB2.0 |
|
|
PC signal |
D-Sub15 pin Input*2, Output *1 |
|
|
HDMI Input port |
HDMI*3(1HDMI keep for inside OPS) |
|
|
PC Audio Input port |
1-Line |
|
|
Earphone Out port |
1-Line |
|
|
Power plug |
12V/24 VDC jack |
|
|
OSD Control |
Menu, Auto, Up, Down, Power |
|
|
Operating condition |
Temperature |
-30°C to 55°C (Operating) -40°C to 70°C (Storage ) |
|
Power & Power rating (support DPMS) |
Input Voltage |
9~36V DC – Militray Grade Power Supply. |
|
Operation |
Less than 500 Watt |
|
|
Stand-by |
‹3 watt |
|
|
External Dimension |
W1970*H1115*D109 mm |
|
|
Mount |
Rack/Embedded mount, VESA 75mm, wall mount, etc.(Optional) |
|
|
Safety Certificate (optional) |
Support MIL-STD-810G ( check below for Detail) |
|
Pull-out computer box
Open plug-in computer, through the pull-out design,
can be easily and quickly separated for the maintenance of computer components
smart monitor
Smart wireless screen
Built-in wireless wifi, which can realize the simultaneous operation and demonstration on
the screen by multiple people, which is convenient for conference discussion and communication.
smart monitor
Provide high-definition picture quality
16.7 million color screens,Image is more clear stereoscopic
smart whiteboard
Complete configuration, stable performance
Multi-function, rejection complex, hd display, fast response Complete interface to meet your needs
smart monitor

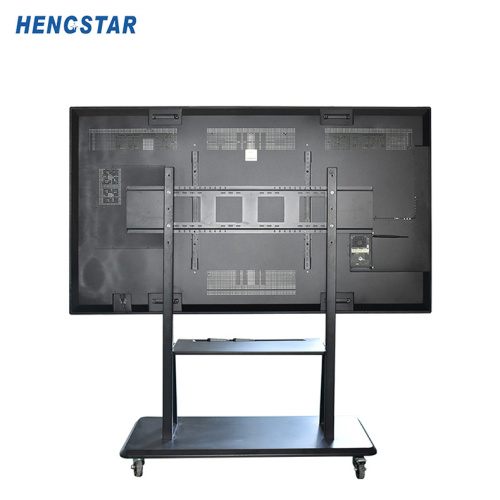

Various installation methods
Wall mounted and mobile bracket installation
smart whiteboard
A wide range of applications
To provide you with professional and effective solutions
