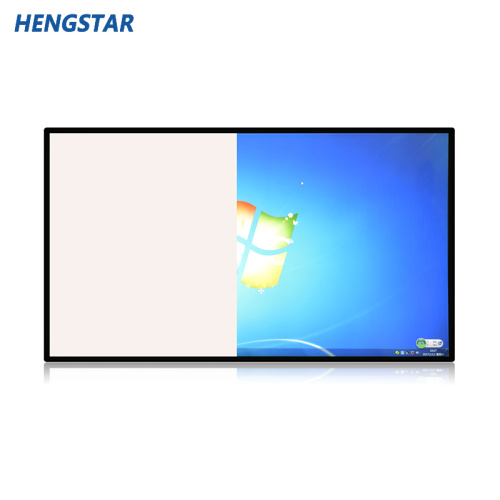

46 inch Transparent LCD Screen Without Polarizer Film
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3-15 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 5000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ROHS, FCC, CE |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Open Frame Monitor Polarizing film is a kind of optical film with polarized light function, which is composed of multiple layers of polymer materials. According to its use position on the LCD screen, it can be roughly divided into top sheet (also called transmission sheet) and negative Two types (also known as reflectors). Hengstar's LCD display uses a non-polarizing film, which is sturdy and waterproof, and can be used indoors and outdoors. Smart digital advertising machine designed for digital video applications. Can be customized according to customer needs. Open Frame Touch Monitor
Open Frame Touch Screen Monitor
Open Frame Touch Monitor Open Frame Touch Monitor Open Frame Touch Monitor Open Frame Touch Monitor
Key Features:
46’’ LED backlight (350~1500nits) LCD display Open Frame Touch Screen
Full HD 1920*1080 resolution
Covered with vandal-proof glass Open Frame Monitor
Front panel IP54 sealed
VGA+HDMI+VGA signal inputs
100-240V AC power input
Built-in cooling fans
Working temp -10~+70 degree Open Frame Touch Screen
46 inch No Polariser Monitor
Screen Protection
Material: 4mm Vandalism glass Open Frame Touch Screen Monitor
Surface hardness: 6-6.5H
Light transmission rate: 89-90%
Treatment: Anti-glare Open Frame Touch Screen
Dimension
Monitor outline (W*H*D): 1235*780*101.5 mm (without wall mount bracket)
Monitor outline (W*H*D): 1235*780*115 mm (including wall mount bracket)
Wall mount bracket dimensions (W*H): 680*536 mm
Fixation holes positions: 400*400 mm
Open Frame Touch Monitor
Product Specification
Model No.
HSIM-V4601
LCD panel
Size/Aspect ratio
46”/16:9
Pixel numbers
1920*1080
Brightness
1000/1500 cd/m2 (Optional)
Contrast Ratio
1200:1
Viewing Angle
178° (H)/178° (V)
Colors
16.7 M
Input terminals
Signal
HDMI, VGA, DVI
Power plug
100-240V AC
OSD Control
Menu / Select, Auto, Up, Down, Power
Environments
Temperature
-10°C to 70°C (Operating)
-20°C to 80°C (Storage )
Humidity
10% RH to 90% RH (Operating)
5% RH to 95% RH (Storage)
Power
Input Voltage
100~240V AC, 50/60Hz
Operation
150 watt
Stand-by
‹1 watt
Weight
N.W./G.W.
32Kgs/40Kgs
Mount/installation
Wall-mount
Mechanical Drawing
