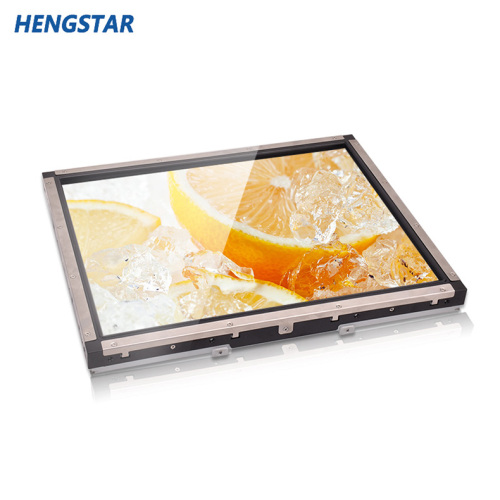

Resistive Touch Screen Industrial Open Frame Lcd Monitor

Resistive Touch Screen Industrial Open Frame Lcd Monitor

Get Latest Price

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 -15 Days

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)
Productivity:	10000
Supply Ability:	10000
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ROHS, FCC, CE
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

HENGSTAR open display adopts a new high-specification, high-grade A + display panel produced by an international manufacturer. It adopts an all-metal casing, which has a strong structure and is resistant to moisture and shock. It is especially suitable for supporting equipment that is easily affected by electromagnetic interference. Using 10bit image chip processing technology, high pixel progressive scan, the picture quality is delicate and realistic. Support a variety of signal inputs to meet the needs of various applications. High brightness, high contrast, fast response time, multi-color support, wide viewing angle. Various installation options, including horizontal mounting bracket, vertical mounting, 100mmx100mm international standard VESA mounting hole.

Open Frame Touch Monitor Open Frame Touch Screen Open Frame Touch Screen Monitor Open Frame Monitor

open frame monitor

Industrial Grade Tft Lcd Panel

Built-in loudspeaker,stereo audio output

vent holes,efficient heat dissipation

Open Frame Monitor

Good Image Quality

support customized port and 1080p full HD no loss signal transfer, meet any needs of high definition signal transfer.

Support Full HD 1920*1080 Resolution

What is an Open Frame Monitor

LED backlight & brightness ooptions

LED enhanced high bright open frame monitors for outdoor kiosks and many other fields.

depending on different application environment,monitor could be with different brightness,such as 300/350/1000/1500/3000 nits

Open Frame Monitor Mounting

Touch options

Resistive touch、 SAW touch、 IR touch 、 Capacitive touch

Open frame type option

Supports custom ports and 1080p Full HD lossless signal transmission

Can provide OEM / ODM services

Therefore, the display can adopt two different designs, closed and open.

Product Specification

Model No	HSOM-1739
LCD panel	Aspect ratio	4:3
	Pixel numbers	1024(H)*768(V)
	Brightness	300 cd/m2
	Contrast Ratio	1000:1
	Viewing Angle	170° (H)/160° (V)
	Colors	16.7 M
Input terminals	Signal	VGA, DVI
	Power plug	100-240V AC in, 12DC out
	OSD Control	Menu/Select,Auto,Up,Down,Power
Environments	Temperature	0°C to 50°C (Operating) -20°C to 60°C (Storage )
Environments	Humidity	10% RH to 90% RH (Operating) 10% RH to 90% RH (Storage)
Power	Input Voltage	100~240V AC, 50/60Hz
	Operation	36 watt
	Stand-by	‹1 watt
Weight	N.W./G.W.	4.8Kgs/6.0Kgs
Mount	VESA mount:100*100mm，wall mount, etc.
Optional	Input: VGA+DVI,VGA+DVI+AV Touch screen(Resistive,SAW,IR,Capacitive) PC Mainboard Speakers Protect glass(Screen protected,double coating)
