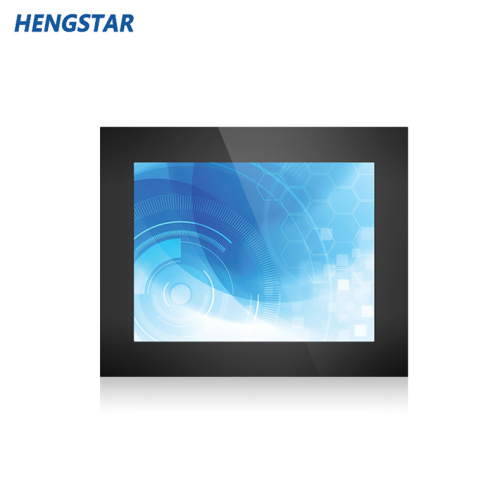

15 Inch Rackmount Industrial Monitor
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3-15 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 5000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ROHS, FCC, CE |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Industrial displays are displays used in industrial control processes or equipment. The main difference between it and civilian or commercial displays is that the shell design is generally made of steel, and the panel is divided into ordinary iron plates, stainless iron, stainless steel, aluminum panels and other materials. The special design is dustproof and shockproof. LCD screen, in the case of higher environmental requirements, consider using a wide temperature (-40 to 85 degrees) LCD screen.
IP65 explosion-proof waterproof
High resolution, high brightness, IPS full viewing angle, LED backlight, more energy saving and environmental protection
Wide temperature operation suitable for harsh environment
Independent research and development of motherboard, wide temperature working (working temperature: -20 ℃ ~ 70 ℃, storage temperature: -30 ℃ ~ 80 ℃), three anti-paint treatment, adapt to various harsh environments
Key Features:
Industrial grade TFT LCD, high brightness panel.
Front covered with vandal-proof glass, for protecting the LCD screen.
Rugged aluminum structure, excellent heat dissipating.
Front IP65 rating, water-proof.
DVI+VGA signal input options, signal auto detect and switch.
100-240V AC power input.
Wide range operating temperature, -20~+60°C.
Rack mount design, easily installation
Suit for industrial control, security and other applications.
Product Specification
Model No.
HSIM-R1501
LCD panel
Size/Aspect ratio
15''/4:3
Pixel numbers
1024(H)*768(V)
Brightness
450 cd/m2
Contrast Ratio
700:1
Viewing Angle
160° (H)/140° (V)
Colors
16.7 M
Input terminals
Signal inputs
VGA+DVI+HDMI
OSD Control
Menu, Auto, Up, Down, Power (back panel)
Operating condition
Temperature
0°C to 60°C (Operating)
-20°C to 70°C (Storage )
Humidity
10% RH to 90% RH (Operating)
5% RH to 95% RH (Storage)
Power &
Power rating
Input Voltage
100~240V AC@/60Hz
Operation
30 watt
Stand-by
‹1 watt
Weight
N.W./G.W.
5.0Kgs/6.0Kgs
External Dimension
406*310*58 mm
Mount
Rack mount, 100*100mm VESA mount
Optional
Input: VGA+DVI,VGA+DVI+HDMI
Touch screen: Resistive, Capacitive
