8 Inch 5-wire Resistive Touch Industrial Panel PC
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS, FCC |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
8 Inch 5-wire Resistive Touch Screen Industrial Panel PC, industrial box computers and industrial monitors are designed for deployment in the following areas: factory automation, food manufacturing, production flooring, kiosks and other industrial applications.
The IP65 protection level of the industrial tablet PC is waterproof, dustproof, shockproof, and high temperature resistant, so as to ensure long-term stable and trouble-free operation, as well as facilitate maintenance and improve production efficiency. At the same time, it also has strong openness and compatibility, and can directly run various application software. The software development environment and software development ecosystem are perfect. It is the best platform for various industrial control, traffic control, environmental protection control and other automation applications. Suitable for a variety of industrial environments.
Industrial Touch Panel Pc
Industrial Panel PC NEMA 4 (IP65) front plate, rugged and low profile
Industrial Touch Panel Pc
Industrial Panel PC Wide operational temperature range, -10°C to +50°C
Rugged Panel Pc
Industrial Panel PC OPERATING SYSTEM
Android, Windows, LINUX system
Industrial Panel Pc
Industrial Panel PC Front Bezel
Black powder coated front bezel， Stainless steel front bezel
Rugged Panel Pc
Industrial Panel PC Touch Screen
5-wire analog resistive touchscreen,Vandal-proof 10 points projected capacitive touchscreen
Industrial Panel Pc
Industrial Panel PC Product Specification
| Product Name | Industrial Panel PC | |
| LCD Screen | Size | From 8.4” to 19” |
| Resolution (H*V) | 800*600(SVGA) / 1024*768 / 1280*1024 etc. | |
| Brightness (nits) | 230 / 250 / 380 / 400 / 450 etc. | |
| Can be high light designed. | ||
| Touch Screen | Technology | 5-wire resistive / 10point capacitive |
| Resolution | 4096*4096 | |
| Light Transmission | >80% | |
| CPU (Intel Atom N270) | 1.6~1.8 GHz Core Frequency | |
| 533MHz FSB | ||
| 512 KBs L2 cache | ||
| 2.5W low TDP | ||
| PC System | Chipset | Intel® 945GSE Express Chipset |
| MCH: 945GSE + ICH7 mBGA | ||
| FWH | ||
| Memory | max supported 4GB Ram | |
| I/O ( FINTEK71862FG Chipset ) | Can be customized | |
| Sound Card | ALC662 chip, 6-channel sound card, front Audio pin | |
| Hardware Detect | ITE8712, CPU detect Fan, system fan, voltage, temperature, etc. | |
| Net Card | 10~100~1000M adaptive network card | |
| Power requirement | +12V | |
| Rear Panel I/O | Can be customized | |
| TV System | System Supported | PAL/SECAM/NTSC |
| Stereo | SRS Tru-Surround XT | |
| Power: 10W*2 | ||
| Quality | Fire-resistance | UL-94HB |
| Approval | Water-resistance | NEMA4 / IP65 |
| Environments | Temperature | Operation: -10°C ~ 60°C ; Storage: -20°C ~ 70°C |
| Humidity | Operation:10%~90% RH ; Storage: 5%~95% RH | |
| Power Supply | Power Input | 24V DC / 90-240V AC |
| Power Consumption | APPROX. 45 / 55 / 60 / 80 (Watts) | |
| Mount | Embedded Mount , Panel Mount , Rack Mount | |
| Accessories | Power Cord , Touch Driver , AC Adapter |
Industrial Panel PC Mechanical Drawing

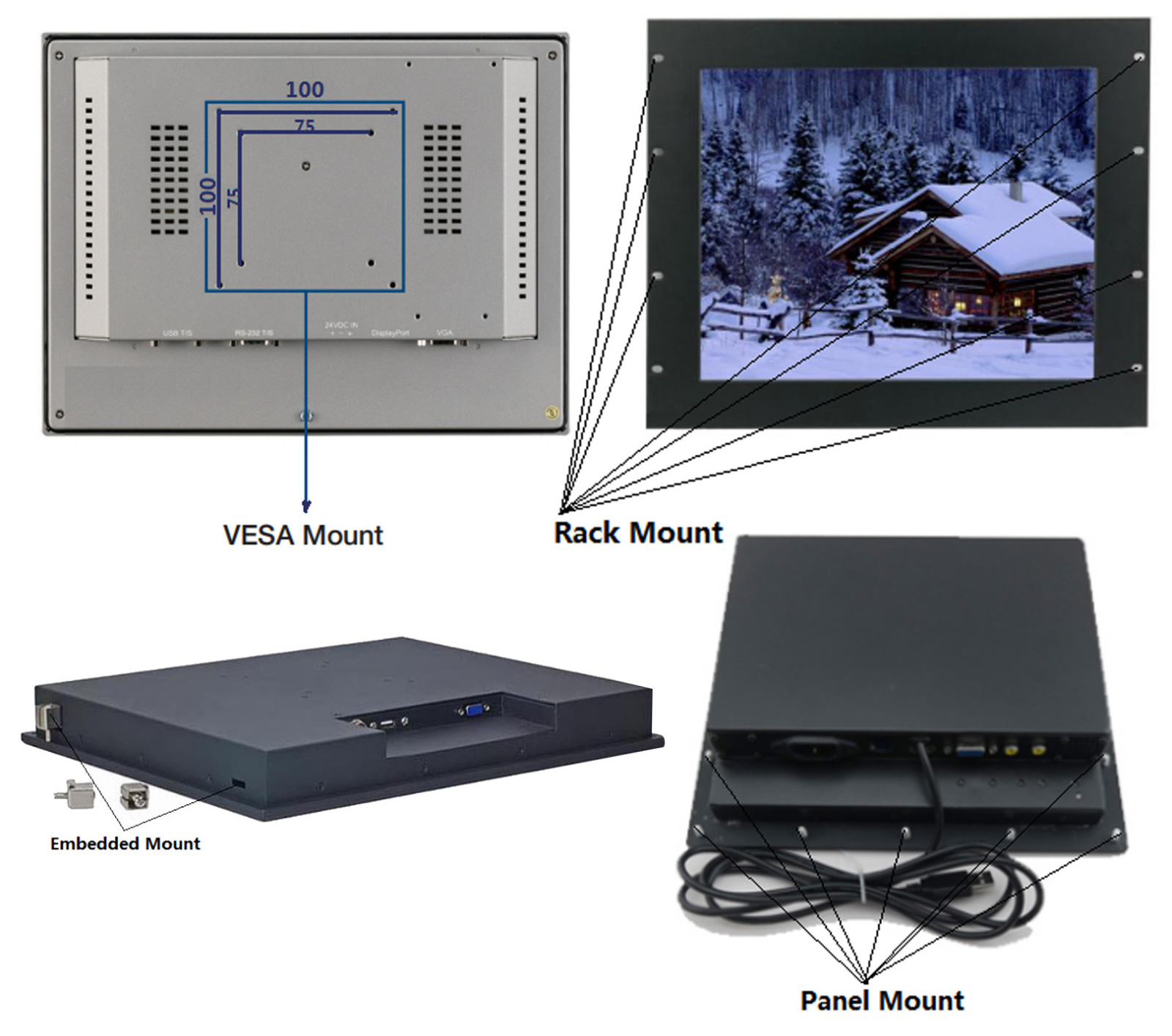

Industrial Panel PC Various installation methods
easy and quick installation
Industrial Panel Pc
