Hengstar Fanless designed Industrial All In One Panel PC
The model is a 21.5-inch fanless, waterproof, dustproof, and corrosion-resistant Industrial All In One PC. It adopts a high-strength aluminum alloy shell, the whole machine is IP67 protection level, on-board memory, low power consumption, fanless heat dissipation design, and long life. Stable operation for a long time. To meet the requirements of various harsh industrial environments. The industrial all in one pc is suitable for applications in automation, rail transit, petrochemical industry, AI intelligence, environmental monitoring, and medical equipment.
Specifications for industrial all in one pc
Item No.
HSPC-2155-ATPC
LCD Screen
Size
21.5’' industrial all in one pc
Aspect Ratio
16:9
Pixel Pitch
0.24795*0.24795 mm
Resolution
1920*1080 (WSUVGA)
View Angle
170° (H)/160° (V)
Brightness
1000/1500 nits (Optional)
Contrast Ratio
1500:1
Colors
16.7M(8Bit)
Touch Screen
Screen
10 point Capacitance Touch
Active Area
479.84*271.30 mm
Viewing Area
477.60*269.20 mm
Screen Thickness
3. 95mm
Resolution
16384*9600
Response Time
Below 10ms
Light Transmission
>80%
Touch Media
Finger
Durability
More than 10,000,000 single touch
MTBF
>60,000 hours
PC System
Intel® Core™ i5-4210U Processor, 2.10 GHz
Quad Core Quad thread 2.1GHz (Optional)
2M L2 cache
35W low TDP
Chipset
i3 i5 i7 optional
Memory
4GB/8GB DDR3L
I/O Interface
2 *USB 2.0, 2 *USB 3.0, 2*(RS232)
1*4PIN 12VCD
2*FAN
1*MINI-SATA
1*MINI-PCIE
1*SATA
1*SIM
1*LVDS/eDP
Sound Card
ALC662 chip, 6-channel sound card,front Audio pin
Hardware Detect
ITE8712, CPU detect Fan, system fan,voltage, temperature, etc.
Net Card
10~100~1000M adaptive network card
H.D.D
SSD 32GB / 64GB / 128 GB
Power requirement
+12V,24V

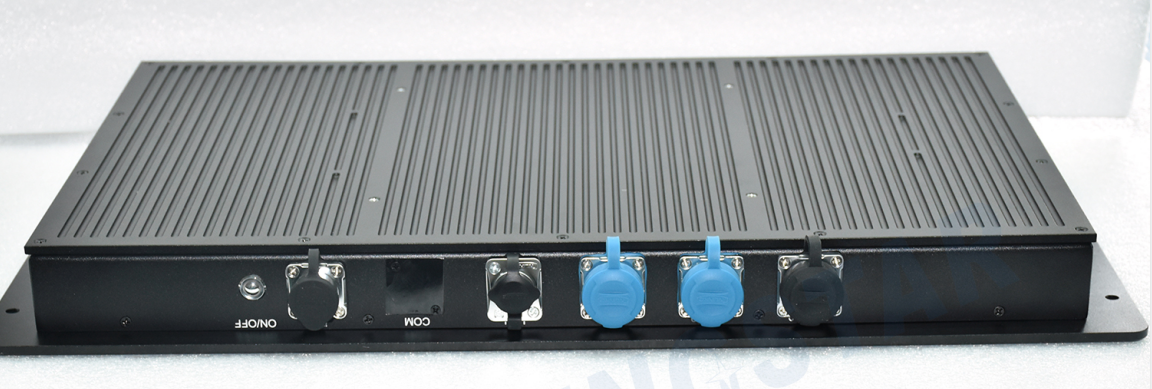

Rear Panel I/O
1*RJ-45
2*2.0USB, 2*3.0USB ports
1*DC (in)
1*HDMI AUDIO-OUT
AUDIO-MIC
s Speaker
Power: 5W*2
Quality
Approval
Fire-resistance
UL-94HB
Chemical-resistance
Active area of Touch is resistant for acetone, toluene, butanone, acetylacetone, methanol, acetic acid, gas, coal oil, and Vinegar.
Certificate
RoHS, FCC (Part 15) CE (EN55022 and EN55024)
Environments
Temperature
Operation: -10°C ~ 60°C
Storage: -20°C ~ 70°C
Humidity
Operation:10%~90% RH
Storage: 5%~95% RH
Power Supply
Power Input
12/24V DC (Optional)
Power Consumption
Approx. 65 Watts
Mount
VESA mount
Accessories
AC Adapter, Power Cord

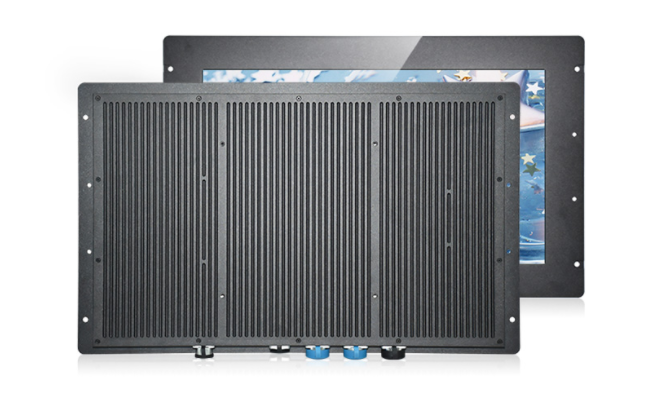

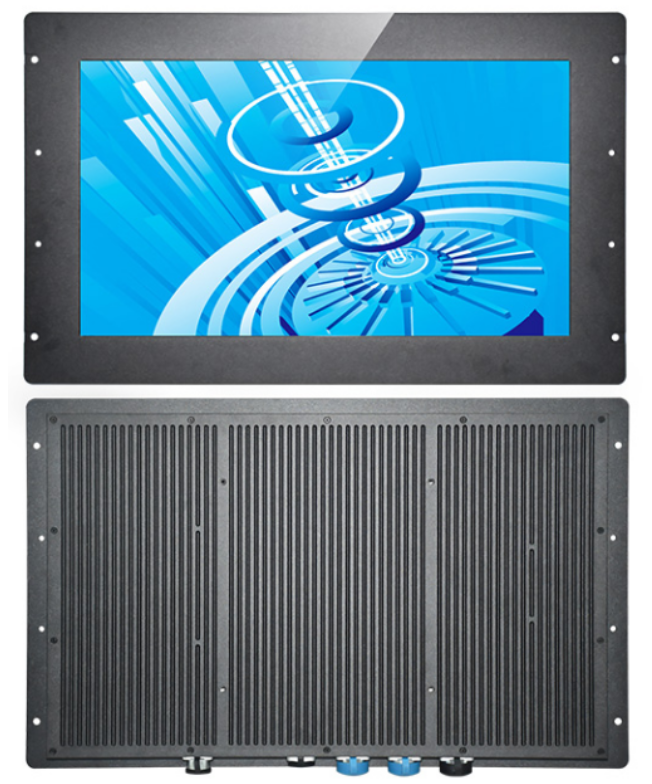

21.5 inch IP67 industrial all in one pc
Industrial all in one pc, TFT ips panel, 10 points capacitive touch; Support rack mount/VESA mount/embedded mount
Application for industrial all in one pc
Industrial all in one computer,all in one panel pc,Industrial All In One Pc,Industrial Personal Computer
Looking for ideal industrial computer Touch Screen Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the All in One Pc I5 are quality guaranteed. We are China Origin Factory of Industrial Computer Fanless. If you have any question, please feel free to contact us.
