21.5 Inch Wall-Mount Windows Touch Industrial All-In-One PC
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ROHS, FCC, CE |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
Industrial all-in-one pcs can be used to monitor parameters such as temperature, humidity, air pressure, and noise in the environment, in order to promptly detect abnormal environmental conditions and take corresponding measures to adjust and improve them. Industrial all-in-one pcs play an important role in environmental monitoring, control, energy management, safety monitoring, and production automation. They can improve the comfort and safety of the working environment, improve production efficiency and quality, and reduce energy consumption and costs.

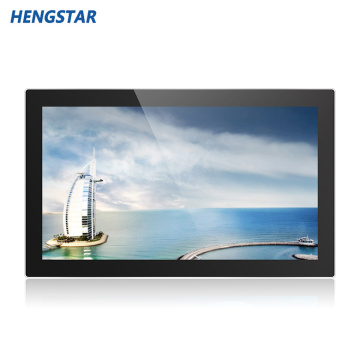

21.5 inch Wall-Mount All in One Panel Windows PC
Key Features:
21.5” HD 1920*1080 resolution TFT LCDscreen.
Integrated with low power Intel® Core™ i3/i5-5/6/7th Processor
Fan-less design.
8GB DDR3RAM.
128GB SSD.
Tempered glass for front panel, rugged and low profiledesign.
NEMA 4X (IP65) Stainless Steel Front Bezel
Black Powder-Coated Rugged Aluminum Rear Enclosure,very ideal for CNC mills.
Wide operational temperature range, -20°C to+50°C.
RoHS compliant.
| Item No. | HSPC-2159 | |
| LCD Screen | Size | 21.5inch |
| Aspect Ratio | 16:09 | |
| Pixel Pitch | 0.2505*0.2505 mm | |
| Resolution | 1920*1080 (SGA) | |
| View Angle | 170° (H)/160° (V) | |
| Brightness | 1000 nits | |
| Contrast Ratio | 350:01:00 | |
| Colors | 16.7M(8Bit) | |
| PC System | Intel® Core™ i7-5th 5500U Processor | Dual core Quadthread 2.4GHz ,Turbo 3.0GHz |
| 4M L2 cache，Bus Speed 5GT/s5 | ||
| 15W low TDP | ||
| Chipset | Intel® Core™ i3/i5/i7-5th 5500U (Optional) | |
| Memory | 8GB DDR3L | |
| I/O Interface | 2 *USB 2.0, 2 *USB 3.0,2*(RS232) | |
| 1*4PIN 12V | ||
| 1*MINI-SATA | ||
| 1*MINI-PCIE | ||
| 1*SATA | ||
| 1*SIM | ||
| 1*LVDS/eDP | ||
| Sound Card | ALC662chip, 6-channel sound card, front Audiopin | |
| Hardware Detect | ITE8712, CPU detect Fan, system fan, voltage, temperature, etc. | |
| Net Card | 10~100~1000M adaptive network card | |
| H.D.D | SSD 128/256/512GB/1TB (Optional) | |
| Power requirement | +12V,24V | |

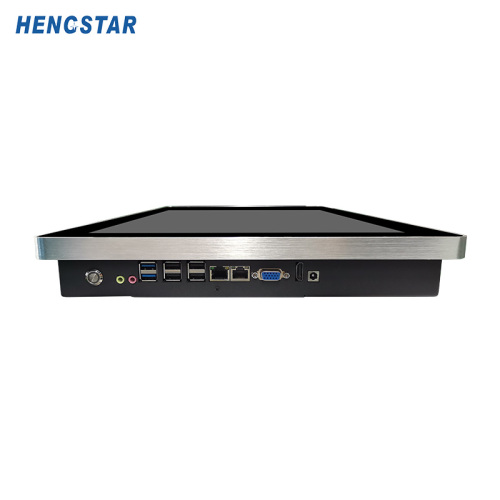

| Rear Panel I/O | VGA CRT 1*RJ-45 | |
| 2*2.0USB, 2*3.0USB ports | ||
| 1*DC (in) | ||
| 1*HDMI | ||
| AUDIO-OUT AUDIO-MIC | ||
