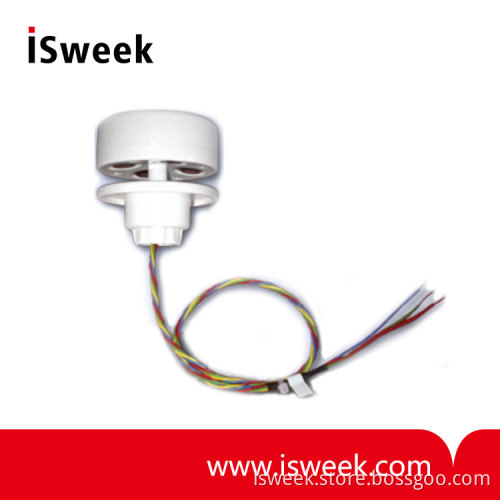

SONIC-ANEMO-MICRO Ultrasonic Wind Speed Sensor

SONIC-ANEMO-MICRO Ultrasonic Wind Speed Sensor Description:

As a result of its very special electronic architecture the SONIC-ANEMO-MICRO shows a very low electrical consumption. It is ideal for remote stations or mobile installation.

SONIC-ANEMO-MICRO is an OEM sensor designed for integration in other original Equipment.

This sensor shows a very low consumption. It operates from 300µA.
SONIC-ANEMO-MICRO is the lowest consumption power solution of all LCJ sensors.

SONIC-ANEMO-MICRO Ultrasonic Wind Speed Sensor Specification:

Options
These industrial option are "Din" boxes with:
• 1x connection for 24VDC/AC power supply
• 1x connection for CV7-V data
• 1x 12 V connection for CV7-V power supply
• Galvanic isolation betwen power supply and analog outputs
• Galvanic isolation betwen power supply and sensor's power supply
• The sensor input is optocoupled.

420 AC
This option features :
• 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
• 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
• 2 Dry contacts for wind speed alarm

ANA-AC
This option features 3 outputs 0-10V:
• 0-15m/s
• 0-30m/s or 0-40m/s selectable
• 0-359° wind direction.
