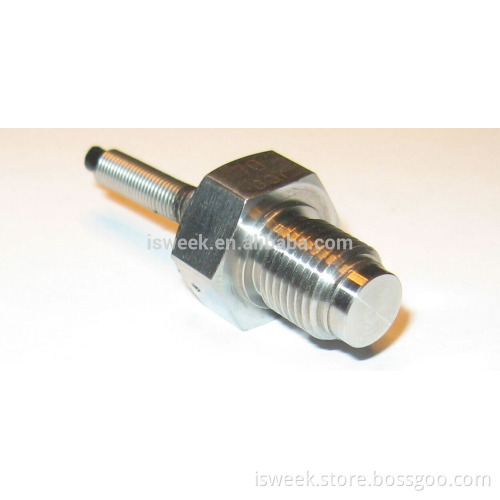

Stainless Steel Pressure Sensor for High Operating Temperature EPXO Series

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	United States

Product Description

Stainless Steel Pressure Sensor for High Operating Temperature EPXO Series Features • Stainless Steel Pressure Sensor
• Flush diaphragm
• High frequency response
• Amplified or unamplified output
• High operating temperatures • Thread M10 or 3/8-24 UNF • Ranges from 10 to 500 bar (150 to 7500 psi) • Rugged Stainless Steel Construction • CE approved DESCRIPTION
The EPXO is a high performance, stainless steel flush diaphragm. It is designed for high temperature, high
stability, and high sensitivity applications. The EPXO is offered in pressure ranges from 10 to 500 bar in gage (vented), sealed gage, and absolute pressure. Various compensated temperature ranges are available from -40°C up to 200°C. The sensor is offered with an amplified or unamplified output. APPLICATIONS • Chemical processing • Automotive test benches • Marine and Flight testing
