TGS5342 CO Sensor For Commercial CO Detector

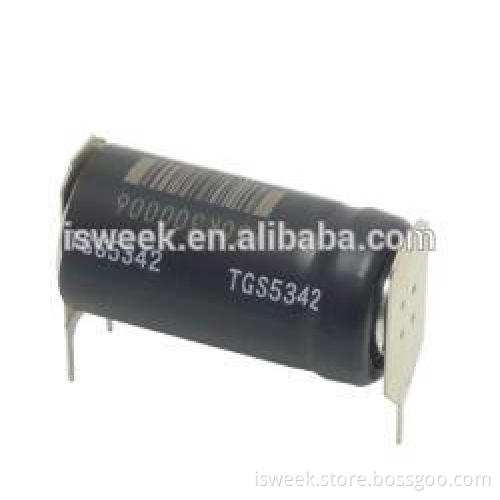

TGS5342 CO Sensor For Commercial CO Detector   Description:  Figaro’s TGS5342 is a battery operable electrochemical sensor which offer several advantages over traditional electrochemical sensors. Its electrolyte is environmentally friendly, it poses no risk of electrolyte leakage, can detect concentrations as high as 1% CO, operates in a range from -40 degree C and +70 degree C, and it has lower sensitivity to interferant gases. With a long life, good long term stability, and high accuracy, this sensor is the ideal choice for CO detectors with digital display. OEM customers will find individual sensors data printed on each sensor in bar code from, enabling users to skip the costly gas calibration process and allowing for individual sensor tracking. The length of TGS5342 is 60% of the TGS5042.
Features:  * Battery operable
* Compact size
* High repeatability/selectivity to CO
* Linear relationship between CO gas concentration and sensor output
* Simple calibration
* Long life
* UL recognized component
* Meets UL2034, EN50291, and RoHS requirements

Applications:  * Residential and commercial CO detectors
* CO monitors for industrial applications
* Ventilation control for indoor parking garages
* Recreational vehicle CO detectors
* Marine CO detectors
* Fire detection     Specifications

Item	TGS5042-A00 (pin version) TGS5042-B00 (ribbon version)	TGS5342
Target gases	Carbon monoxide
Typical detection range	0~10,000ppm
Output current in CO	1.2~1.4nA/ppm	0.7~1.4nA/ppm
Baseline offset	<±10ppm equivalent
Operating temperature	0℃~ +50℃ (continuous) -5℃~ +55℃ (intermittent)	-10℃~ +50℃ (continuous) -20℃~ +60℃ (intermittent)
Dimensions	φ14.1 x 49.7mm	φ14.1 x 27.9mm
Weight	approx. 12g	approx. 7g
Standard test conditions	20±2℃, 40±10%RH
Expected sensor life	10 years
