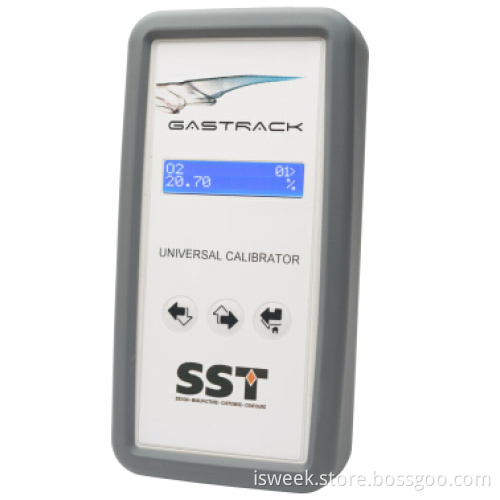

Compact lightweight design Calibrator Universal Calibrator

Compact lightweight design Calibrator Universal Calibrator
                                            Model Number: U-CAL-UGT                                                  FEATURES a,Intuitive menu structure makes configuration and calibration quick and simple—no more meters or screwdriver adjustments!
b,Powered by the product being calibrated
c,Compact, lightweight design
d,LCD screen—alpha numeric display
e,Easy to clean soft-touch buttons   Compact lightweight design Calibrator Universal Calibrator   APPLICATIONS
 Display and configuration:
 Sensor status and calibration
 Communication settings
 Analogue output measurements
 Alarm status and thresholds
 Hardware testing
 Can be used with all GasTrack products     Compact lightweight design Calibrator Universal Calibrator   TECHNICAL SPECIFICATIONS
Temperature rating                                        -10 to +60° C
Construction                                                 ABS (UL94-V0) enclosure with protective silicone cover
Seal rating                                                   IP40
Supply voltage                                               Powered by the product being calibrated
Current consumption                                       100mA maximum
Cable connector                                              9-pin D-type connector(1)
Display                                                          LCD screen alpha numeric 16 character x 2 line blue screen with white text
Keypad                                                           3 x soft-touch buttons Compact lightweight design Calibrator Universal Calibrator   BUTTON FUNCTIONS
  Compact lightweight design Calibrator Universal Calibrator     ORDER INFORMATION
Specify the part number below when ordering the Universal Calibrator.                                       U - C A L
Cables available separately. Specify the part number that corresponds to the option you require—include the U-CAL prefix.

Part Number	Connector / Cable Assignment
U-CAL-UGT (Universal Gas Transmitter Probe only)	8-way, M12 T-connector (male to female)
U-CAL-IDC (All other Gastrack products)	8-way, IDC female connector

Compact lightweight design Calibrator Universal Calibrator   OUTLINE DRAWING All dimensions shown in mm. Tolerances = ±1mm.
Enclosure
    Protective Cover
