Zirconia Oxygen Analyser OXY-COMM for Refrigerated Transportation Containers

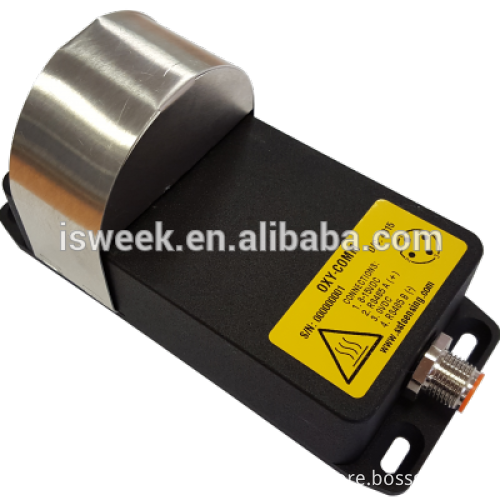

Zirconia Oxygen Analyser OXY-COMM for Refrigerated Transportation Containersirconia    Description The OXY-COMM Zirconia Oxygen Analyser is designed for controlled atmosphere applications such as refrigerated transportation containers and fire prevention.  The OXY-COMM Zirconia Oxygen Analyser combines a high accuracy zirconium dioxide oxygen sensor with a networkable, fault tolerant RS485 interface. The oxygen analyser is mounted under a stainless steel hood to protect it from the environment. The IP65 waterproof die-cast aluminium housing accommodates the electronics and has a 4-pole M12 connector to allow multiple devices to be interconnected. The oxygen sensor inside OXY-COMM uses a unique closed loop measurement system. While OXY-COMM continuously measures the oxygen level, a heartbeat signal is also generated providing an immediate warning of any failures. Due to the innovative design, the OXY-COMM zirconia oxygen analyser does not require a reference gas.  Low drift means these products do not require frequent calibration but when they do, it is an extremely simple process which can be performed in fresh air which means there is no need for expensive calibration gases. The OXY-COMM zirconia oxygen analyser has an 8 to 15Vdc supply voltage range with reverse polarity and transient overvoltage protection. The oxygen analyser is barometric pressure compensated and can be calibrated in fresh air (20.7% O2) or to any other known O2 concentration. FEATURES Zirconium dioxide technology Small sensing element Networkable, fault tolerant RS485 interface, short circuit and overvoltage protection 8-15Vdc supply voltage with reverse polarity and transient overvoltage protection Can be calibrated in fresh air (20.7% O2) or to any other known concentration Barometric pressure compensated Applications of Oxygen Gas Analyser controlled atmosphere applications such as refrigerated transportation containers and fire prevention.  TECHNICAL SPECIFICATIONS

Supply voltage	8-15Vdc
Bus pin faults	+/-60Vdc
Current consumption	950mA at 12Vdc maximum
Temperature:
Storage	-40 to 85C
OFF mode	-40 to 85C
Standby mode	-40 to 70C
On mode	-40 to 60C
Cleaning mode	-40 to 45C
Absolute operating pressure	260 to 1260mbar
Gas flow rate	0-5m/s
Weight	<300g
Seal rating	IP65

  OUTPUT VALUES

Initial output stabilisation time	<10mins
Oxygen measurement range¹	0.1 to 100% O2
Accuracy after calibration in fresh air to 20.7% O2	<+/- 0.5% O2
Accuracy after calibration in 100% O2	<+/- 0.5% O2
Repeatability	<+/- 0.5% O2
Measurement resolution	0.01% O2
Response time (10-90%)	<15s
Heater warm up times (no oxygen measurement):
OFF mode to ON mode	60s
Standby mode to ON mode	20s
Cleaning mode to ON mode	5s
