FPI-HS Pressure sensor module Signal Conditioner for Pressure Sensor High-Speed Measurement Applications

  Application Products -FOP pressure sensor
-FPI-HS module sensor

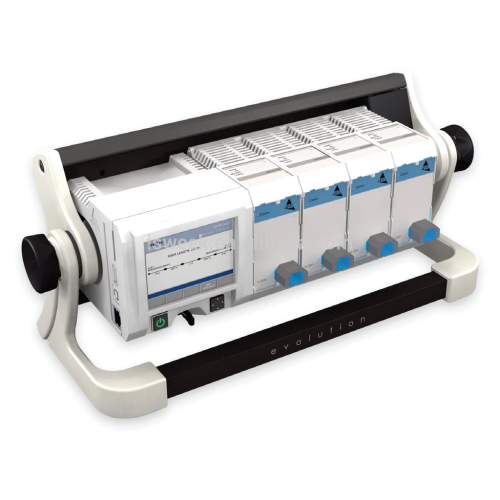

-EVOLUTION chassis   Key Features -High accuracy
-Up to 15 kHz sampling rate
- Temperature-compensated modules
-Atmospheric pressure compensation (option)   PRESSURE – FOP-M
Measuring range R1: 0 to 5 psi / R2: 0 to 50 psi
R3: 0 to 150 psi / R4: 0 to 1000 psi
Operating temperature −20°C to 150°C
Accuracy1 ±0.5% of full scale
Resolution 0.05% of full scale
Sampling rate Up to 15 kHz
Number of channel 1
Analog output (Optional) 0 to 5V or 4–20 mA / 16 bits resolution
Operating temperature 10ºC to 50ºC
Storage temperature −20ºC to 70ºC
Power consumption <12 Watts
Lamp lifetime2 3000 hours
Connector SCAI3, SCA
Fiber core size 62.5/125μm
Communication / Evolution chassis USB via EVO chassis / TS 35 DIN RAIL
Communication / OEM RS-232 / RS-485
