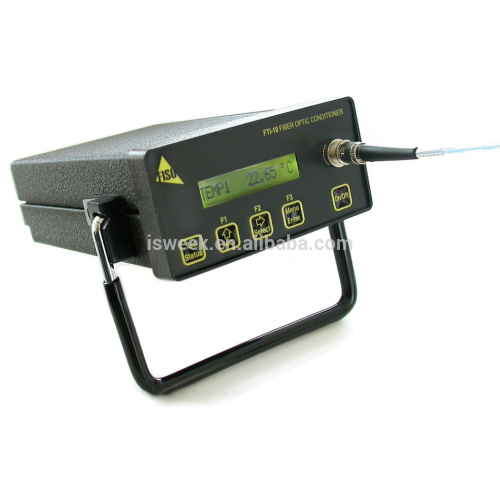

Single Channel Fiber Optic Signal Conditioner FTI-10

Single Channel Fiber Optic Signal Conditioner FTI-10   The FTI-10 is a single-channel, battery-powered fi ber optic signal conditioner
especially designed to work with all of FISO’s fi ber optic sensors. It is a
general-purpose instrument ideally suited to perform single-point measurements
in a myriad of industrial and R&D applications.
The FTI-10 conditioner is designed to perform accurate single-channel measurements.
Thanks to its unique, patented technology, the FTI-10 conditioner is capable
of measuring the absolute cavity length of FISO’s Fabry-Perot fi ber optic sensors
with astonishing accuracy, providing highly accurate and reliable measurements.
The FTI-10 has a 0.01% full-scale resolution and a 0.025% full-scale precision.
The FTI-10 optical input channel is easily accessible through the unit’s front panel.
It comes standard with an RS-232 communication port and a ±10 V adjus table
analog output. Moreover, the unit’s internal Flash ROM can be accessed to allow
fi rm ware upgrades and updates.
Data is stored in the internal memory buffer for later retrieval or sent directly to
any analog input signal reading device through the ±10 V adjustable analog output
available on the back panel of the FTI-10 unit.
FISO’s fi ber optic temperature, pressure, strain, refractive index, and displacement
sensors offer complete immunity to RF and microwave radiation with high temperature
opera ting capability, intrinsic safety, and non-invasive use. A seven-digit
gauge factor assigned to each sensor allows the FTI-10 conditioner to recognize
automatically the sensor type and calibration, reducing test setup time.   The FTI-10 conditioner has a non-volatile memory buffer that can store up to
50 000 data points. Data logging sequences, duration, and other acquisition and
data-management parameters are easily programmable using the front-panel
interface, through RS-232 remote control commands or, even more easily, thanks
to its accompanying software, FISOCommander.
The FTI-10 comes in a rugged 1/8 DIN casing designed to withstand heavy use and
operation in industrial environments and has up to 8 hours of battery autonomy.       Contact :
