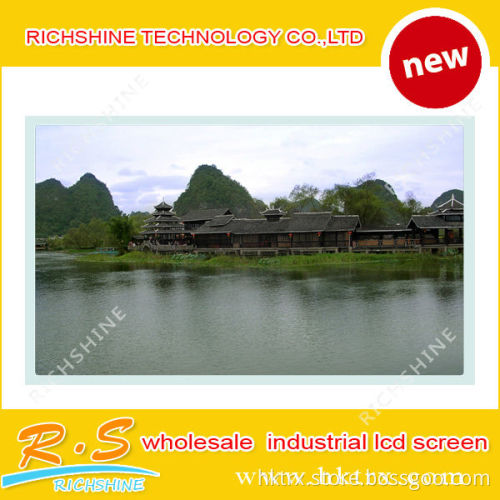

AUO 8.4 inch 800*600 G084SN05 V8 lcd module
  • AUO 8.4 inch 800*600 G084SN05 V8 lcd module
AUO 8.4 inch 800*600 G084SN05 V8 lcd module

AUO 8.4 inch 800*600 G084SN05 V8 lcd module

Get Latest Price
Payment Type:
T/T
Min. Order:
20 Piece/Pieces
Min. Order:
20 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China (Mainland)
Supply Ability: 200 Piece/Pieces per Month
Payment Type: T/T
Product Description
Product Description
Specifications 1.Brand:AUO

2.model:G084SN05 V8

3.Pandel Side:8.4 inch

4.Resolution:800*600

AUO G084SN05 V8 Mechanical Features
Panel Size 8.4 inch
Dot Resolution 800(RGB)*600,WXGA
Aspect Ratio 4:3(W:H)
Pixel Configuration RGB Vertical Stripe
Pixel Pitch 0.213*0.213 mm(W*H)
Weight 250±10g(Max.)
Surface Antiglare,Hard coating(3H)
Active Area 170.4*127.8 mm(W*H)
Bezel Area 174.15*131.2 mm(W*H)
Outline Dimension 203.0*142.5 mm(W*H)
Outline Depth 8.0±0.3 mm
Holes & Brackets Face mounting holes(2-3.0;2-r1.5)
Touch Panel Without
AUO G084SN05 V8 Optical Features
Display Mode TN,Normally White,Transmissive
Brightness 450 cd/m2(Typ.)
Contrast Ratio 600:1(Typ.)(Transmissive)
Display Color 262K/16.2M(6-bit/6-bit+FRC)
Color Gamut 45%
Response Time 20/10(Typ.)(Tr+Td)
Viewing Angle 80/80/80/60(Typ.)(CR=10)(L/R/U/D)
Viewing Direction 12 o'clock
White color Chromaticity X:0.310; Y:0.330
White Variation 1.33(Max.)(5 points)
AUO G084SN05 V8 Electronics Features
Vertical Frequency 60HZ
Reverse Scan Yes(U/D,L/R)
Total Power Consumption 4.2W(Typ.)
AUO G084SN05 V8 Signal Interface
Signal Category LVDS
Signal Class LVDS(1 ch,6/8-bit)
Pin Configuration LVDS-20P1C8B-140A
Input Voltage for Panel 3.3V(Typ.)
Input Current for Panel 270/330mA(Typ./Max.)
Panel Power Consumption 0.9/1.2W(Typ./Max.)
Interface Type Connector
Interface Brand STM
Interface Model MSB24013P20HA
Interface Pin Pitch 1.0 mm
Interface Amount 1 pcs
Interface Pins 20 pins
AUO G084SN05 V8 Backlight System
Lamp Position Edge light type(Bottom side)
Lamp Type WLED
Lamp Life Time 50,000(Min.)(Hours)
Lamp Replaceable Replaceable
Lamp Voltage 38.4/43.8V(Typ./Max.)
Lamp Power Consumption 3.07W(Typ.)
Lamp Driver Board Embedded(LED Driver)
Lamp Driver Board 12V(Min./Typ./Max.)
Lamp Driver Board 0.27A(Typ.)
Lamp Driver Board 3.24/3.40W(Typ./Max.)
Interface Type Connector
Interface Brand ENTERY
Interface Model 3808K-F04N-02R
Interface Amount 1 pcs
Interface Pins 5 pins
AUO G084SN05 V8 Packing Form
Amount per Box 30 pcs
Box Size 405*328*301 mm(L*W*H)
Box Gross Weight 9.5 Kgs
