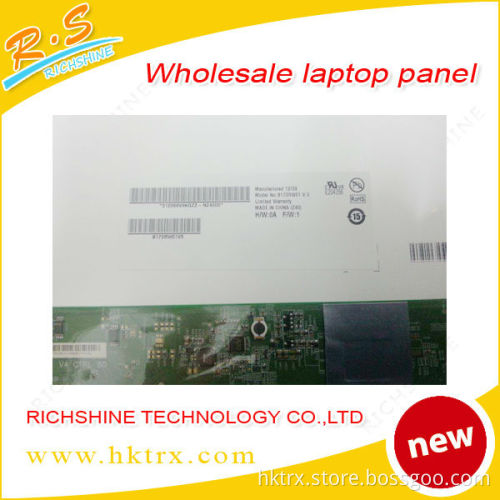

AUO B173RW01 V5 17.3 inch 1600*900 laptop screen panel

Specifications 1.Brand:AUO

2.model:B173RW01

3.Pandel Side:17.3 inch

4.Resolution:1600*900

AUO B173RW01 V5 Mechanical Features
Panel Size	17.3 inch
Dot Resolution	1600(RGB)*900,HD+
Aspect Ratio	16:9(W:H)
Pixel Configuration	RGB Vertical Stripe
Pixel Pitch	0.2388*0.2388 mm(W*H)
Weight	570g(Max.)
Surface	Glare(Haze 0%)
Active Area	382.08*214.92 mm(W*H)
Bezel Area	385.48*218.31 mm(W*H)
Outline Dimension	398.1*232.8 mm(W*H)
OUtline Depth	5.8(Max.) mm
Holes & Brackets	Side mounting holes(8-M2)
Touch Panel	Without
AUO B173RW01 V5 Optical Features
Display Mode	TN,Normally White,Transmissive
Brightness	200 cd/m2(Typ.)
Contrast Ratio	500:1(Typ.)(Transmissive)
Display Color	262K(6-bit)
Color Gamut	60%
Response Time	8(Typ.)(Tr+Td)
Viewing Angle	45/45/15/35(Typ.)(CR>=10)(L/R/U/D)
White color Chromaticity	X:0.313; Y:0.329
White Variation	1.25/1.60(Max.)(5/13 points)
AUO B173RW01 V5 Electronics Features
Vertical Frequency	60HZ
Reverse	No
Total Power Consumption	6.5W(Max.)
AUO B173RW01 V5 Signal Interface
Signal Category	LVDS
Signal Class	LVDS(1 ch,6-bit)
Pin Configuration	LVDS-40P2C6B-010A
Input Voltage for Panel	3.3V(Typ.)
Input Current for panel	350/450mA(Typ./Max.)
Panel Power Consumption	1.5W(Max.)
Interface Type	Connector
Interface Brand	JAE
Interface Model	HD1S040HA1
Interface Pin Pitch	0.5 mm
Interface Amount	1 pcs
Interface Pins	40 pins
AUO B173RW01 V5 Backlight System
Lamp Position	Edge light type
Lamp Type	WLED
Lamp Life Time	15,000(Min.)(Hours)
Lamp Driver Board	Embedded(LED Driver)
Lamp Driver Board	7.0/21.0V(Min./Max.)
Lamp Driver Board	4.8/5.0W(Typ./Max.)
Interface Type	Included in signal interface
