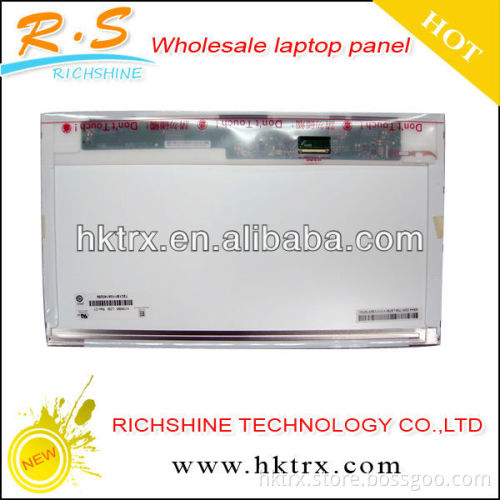

New CMI/CMO 15.6inch LVDS laptop lcd screen panel N156BGE-L21 1366*768

Specifications New CMI/CMO 15.6inch LVDS laptop lcd screen panel N156BGE-L21 1366*768

Type :a-Si TFT-LCD,panel

Resolution:1366*768

Product Description   New CMI/CMO 15.6inch LVDS laptop lcd screen panel N156BGE-L21 1366*768

Panel Brand:	AUO
Panel Model:	N156BGE-L21
Panel Type:	a-Si TFT-LCD,Panel
Panel Size:	15.6 inch
Dot Resolution:	1366(RGB)*768(WXGA)
Display Mode:	TN,Normally White,Transmissive
Surface:	Glare (Haze 0%),Hard coating(3H)
Brightness:	220 cd/m² (Typ.)
Contrast Ratio:	650:1(Typ.)(Transmissive)
Display Colors:	262K(6-bit)
Response Rime:	3/8 (Typ.)(Tr/Td)(ms)
Viewing Angle:	45/45/20/45 (Typ.)(CR≥10)(L/R/U/D)
Frequency:	60Hz
Lamp Type:	WLED
Signal Interface:	LVDS(1 ch,6-bit)
Input Voltage:	3.3V(Typ.)
RoHS:	√ RoHS
Application:	Notebook PC

      We still have other models and more in stock :

Model	Description
B101AW06 V1	10.1 1024*600 LVDS
B116XTN01.0	11.6 1366*768 eDP
B140XW01VB	14.0 1366*768 LVDS
B156HTN02.1 HOT!	15.6 1024*1080 HD LVDS
B173RW01 V5 HOT!	17.3 1600*900 HD+ LVDS
N101ICG-L21	10.1 1280*800 LVDS
N116HSE-EJ1 HOT!	11.6 1920*1080 FHD eDP
N133HSE-EA1 HOT!	13.3 1920*1080 FHD eDP
N140BGE-L32	14.0 1366*768 LVDS
N140BGE-E43	14.0 1366*768 eDP
N154C6-L02	15.4 1440*900 LVDS
N156BGE-L21	15.6 1366*768 LVDS
N156B6-L0B	15.6 1366*768 LVDS
N184HGE-L21	18.3 1024*1080 LVDS

  Sizes: 7.0, 8.9", 9.7”, 10.0”, 10.1", 10.2”, 10.4”, 11.1”,11.6”, 12.1", 12.5",13.1”, 13.3", 14.0", 14.1", 14.5",15.0" 15.4”, 15.6", 16.0”, 16.4”, 17.0", 17.1”, 17.3" ,18.4"  Resolutions: XGA, WXGA, WXGA HD, , WXGA+, WXGA++, WSVGA, WUXGA, WUXGA+, WUXGA++, Full-HD
Backlight technologies: LED, SLIM LED,1 CCFL, 2 CCFL   Packaging & Shipping       Our Services     Guarantee:   (1)    All items will be strictly tested and shipped with strong package. (2)    We have 3~6months warranty for every item, depend on the different item. (3)    We will do our best to solve any possible problem for your after sale. Please contact with us.   Company Information   About Us: ShenZhen Richshine Technology CO.,LTD was established in 2002, Specialized in the LCD product development / production, we holds the operating philosophy of "quality, service, responsibility, innovation". Our products have passed the certification of ISO9001 Quality Management System, 3C, UL, CE and ROHS in order to improve quality of our products. we have a wealth of professional experience and strong research and development, always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development! Contact us: Tel:86-755-83226213 Mobile Phone:86 015273502081 Email:sales006 AT hktrx.com Fax: 86-755-83226213 Skype: sales006_hktrx
