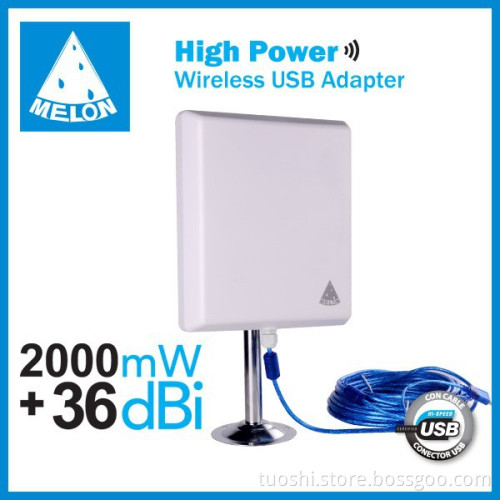

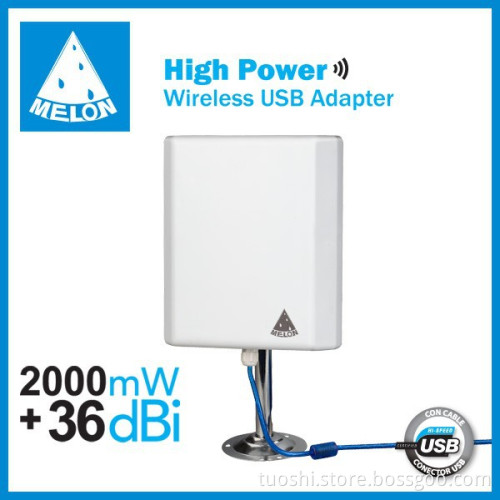

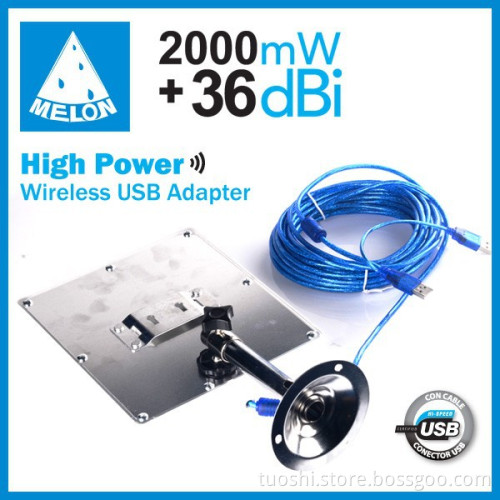

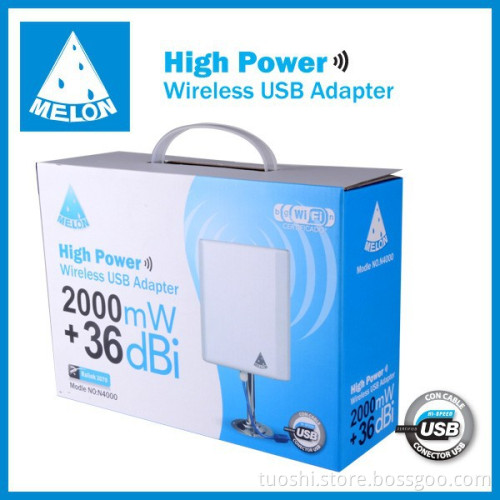

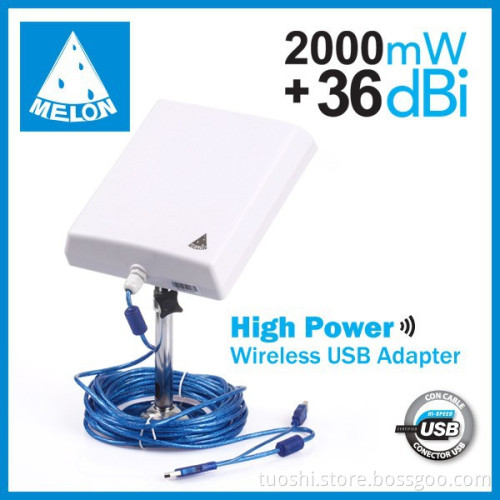

Melon N4000 panel antenna wifi,high power 2000mW,36dBi high gain panel antenna

Melon N4000 panel antenna wifi,high power 2000mW,36dBi high gain panel antenna

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Product Description Product name: Melon N4000 panel antenna wifi,high power 2000mW,36dBi high gain panel antenna Features: Ralink 3070 chipset 802.11g/b/n standard 2000mW high power 150Mbps transmission rate

Specification:

Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback	11n: Up to 150Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic)
Frequency Range	2.4-2.4835GHz
Wireless Transmit Power	25dBm(EIRP)
Modulation Type	DBPSK, DQPSK, CCK, OFDM
Receiver Sensitivity	150M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER
Work Mode	Ad-Hoc Infrastructure, soft AP mode
Wireless Security	64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System	Windows 2000/XP/VISTA/Win7/win 8/Linux/Mac
Interface	USB2.0 Hi-Speed connector
Antenna Type	36 dBi omni-directional antenna
Operating Temperature	-20°C~60°C (-4°F~140°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Relative Humidity	10% ~ 90%, non condensation
Storage Humidity	5%~95% non-condensing
Weight	0.9kg
Chipset	Ralink 3070
