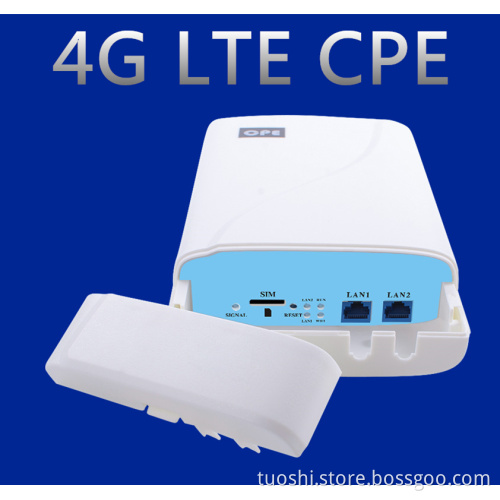

Outdoor 4G LTE CPE CAT 4 32 user from factory supplier,LT18

  Product Description Outdoor 4G LTE CPE  CAT 4 32 user from factory supplier,LT18
    Features:   * 32 users supported * FDD 150Mbps DL/50Mbps UL,fallback function support 3G/2G * Built-in antenna * Outdoor waterproof case * 2 Lan ports *Support POE power supply        Specifications:

	Form Factor	LTE CPE
Interface	Network	2*lan
	SIM	2FF mini sim
	Button	reset
	POE	Input voltage: 24V-1A
Solution	Routing and WiFi chipset supplier	MTK
BASE	Routing and WiFi chipset model	MT7620N
	Routing and WiFi processor info	IEEE 80 2.11 /b/g/n
	DDR/SPI	64MBytes/8MBytes
Software	Language	Chinese&English
	APN Setting	Supported
	Device Settings	Supported
	Routing Settings	Supported
	Firewall Settings	Supported
	LED	Supported
Technical standard	OS	Windows XP
		Windows Vista
		Windows 7
		MAC
		Linux
	Browser	IE (7.0 and later)
		Firefox (3.0 and later)
		Safari (4.0 and later)
		Opera (10.0 and later)
		Chrome (10.0 and later)
Envionment	Operating temperature	-10 to 60° C
	Storage temperature	-20 to 70° C
	Humidity	5% to 95%
	Feature	Description
	Form Factor	Module
ID	Interface	Compliant with PCI Express Mini Card
	SIZE	51*30*5mm
Solution	Wireless chipset supplier	Marvell
Base	Wireless chipset model	88MP1802
	Wireless processor info	CAT4
	USIM/SIM slot	Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card
RF	Main antenna	Internal antenna
	Receive diversity antenna	Internal antenna
	GSM band	Band 2/3/5/8 (CUSTOMIZABLE)
	UMTS band	Band 1/2/5/8 ( CUSTOMIZABLE)
	LTE FDD band	Band 1/3/7 (CUSTOMIZABLE)
	MIMO for wireless	2 × 2 DL SU-MIMO for LTE and HSPA
	Max. transmitter power for wireless	LTE: +23dBm  WCDMA: +24dBm (Power Class 3)
Technical standard	UMTS/LTE	WCDMA: HSDP DL 7.2Mbps  FDD LTE :UL 50Mbps;DL150Mbps
	3GPP release	FDD-LTE 3GPP Release 9 WCDMA Rel 4
	Operating temperature	-10°C to 55°C
	Storage temperature	-20°C to 70°C
	Humidity	5% to 95%
	Storage temperature	-40 to 85° C
	Humidity	5% to 95%

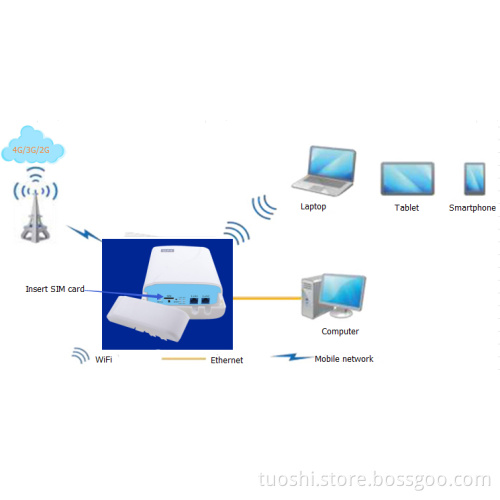

Application:    Insert Sim card to the CPE,then wifi comes out.         Welcome to visit our factory! Contact: Email:sales2 at tuoshi.cn Skype:tuoshitwo Whatsapp:+86 13530217516
