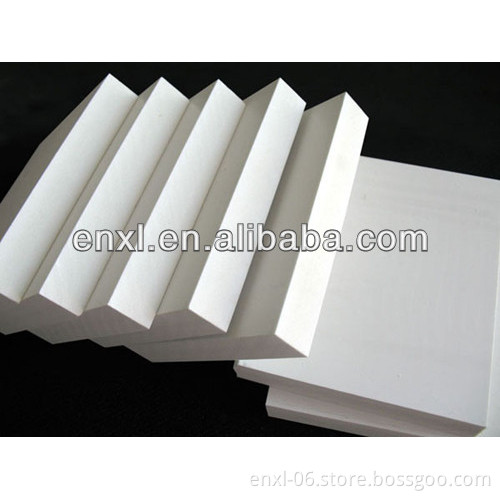

High Density PVC Rigid Sheet /PVC board/PVC panel

Specifications stable quality,

not susceptible to the erosion of acid and alkali,

inflaming retarding

good mechanical strength

High Density PVC Rigid Sheet /PVC board/PVC panel   The tolerance is subject to DIN: length+0-3%, width:+0-3%. Standard size of rigid PVC sheet stock: 1000 x 2000mm, 610 x 1220mm, other specifications need to be customized. All all products have been handled strictly according to the tempering process, the internal stress has reached the minumm level.    Boon Xin Long's rigid PVC Sheet have only one grade: 100% pure material.      Features: 1. feather light, non-absorb water, fire retardant and self-extinguishing 2. sound insulation, heat insulation , noise absorption, heat preservation and corrosion preventin. 3. weather proof, vandal proof, and can be shaped, moulded, painted and screen printed. 4. non-warping and stain proof. 5. non-corrosive, non-toxic and chemical resistant. 6. tough, rigid with a high impact stregth. 7. easy to clean and maintain.    Application: 1.Advertisement: exhibition & display,digital printing,silk screen printing,engraving materials,sign board, etc. 2.Furnitureoffice furniture,cabinet,bath cabinet,etc. 3.Finishing Materialdecorative sheets,storage racks,room segments,etc. 4.Industrial Application:thermoforming products,refrigeratory warehouse project,environmental protection.   Specification:

Name	Density(g/cm3)±0.02	width and length(mm)	Thickness(mm)±0.2	Color
PVC Foam Board	0.7	1220*2440	1~20	white,red, yellow, blue, green,  gray, black
	0.6		2~20
	0.5		3~6
	0.8	1560*3050	1~20
	0.6		2~20
	0.7	2000*3050	2~6
pvc rigid sheet	1.38/1.45	1220*2440	0.23-1.8
			0.25-5

  Mechanical Property:

Project	Unit	Index
Surface density	kgm3	550~900
Elongation strength	mpa	≥10
Elongation rate at break		≥15
Bending strength	mpa	≥20
Impact strength of free beam	kjm2	≥10
Schauder hardness	D	≥55
Softening Point	°C	≥70
Water absorption		≤1.0
