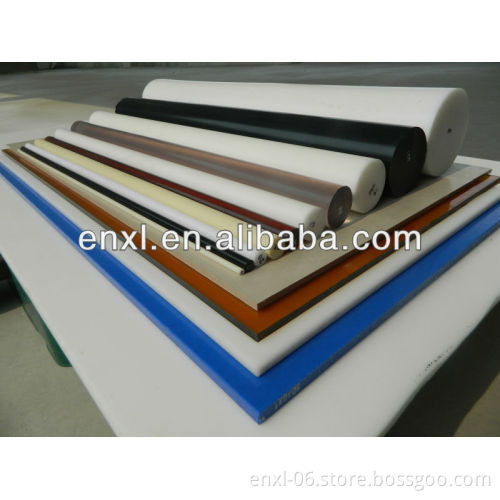

Engineering Plastic sheets and rods
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
2 not susceptible to the erosion of acid and alkali
3 inflaming retardant
Engineering Plastic sheets and rods specifications Grade A rigid PVC Sheet
1. diameter: 6-200mm
2. length:1000mm / 2000mm
4. Density: 1.45g/cm3 The tolerance is subject to DIN: length+0-3%, width:+0-3%. Standard size of rigid PVC sheet stock: 1000mm, 2000mm, other specifications need to be customized. All all products have been handled strictly according to the tempering process, the internal stress has reached the minumm level. Boon Xin Long's rigid PVC Sheets and rods have only one grade: 100% pure material.
Basic information | |
Product name | PVC rod and PVC sheet |
Polyvinyl chloride sheet | |
Item NO. | PVC-005 |
Country of origin | Guangdong China |
Brand | EnXL, Boon Xin Long |
Optional type | Sheet,Rod |
Material | Virgin PVC resin |
Grade | Grade A |
Certificate | SGS,Rosh |
Environment | Recyclable |
Sample | For free, but customer pays the freight. |
Similar products | PP rod,PE rod,UPVC rod |
Specification | |
Density | 1.55-1.6 g/cm3 |
Colour | Natural(gery),black, other colors can be customized |
Sheets Thickness | 15-100mm |
Stock Size | 1000×2000mm,1220×610mm,can be customized |
Rods Diameter | 10-200mm |
Stock Size (Length) | 1000mm,can be customized |
Tubes outer diameter | Can be customized |
Size | |
Formation methods | Extrude or lamination |
Delivery details | |
Stock | 50Ton |
Packaging | 1. Wooden pallet with carton. |
2. Plastic pallet with carton. | |
3. Wooden pallet with wooden case. | |
4. According to customer requirements. | |
Delivery | 1. Stock size 3-5 working days. |
2. Custom size 8-15 working days. | |
Attribute parameter | |
Flame test | V -0 , can be self-extinguishing |
Impact strength | planar ≥8kJ/m2 side ≥8kJ/m2 |
Tensile strength | Transverse ≥40MPa Vertical ≥40MPa |
Heat size change rate | Transverse ± 3 % Vertical ± 5% |
Property | |
1. Excellent anti-tearing | |
2. Insulating property is good | |
3. Fire retardant, with self-extinguishing | |
4. Degree of hardness is big, the intensity is high | |
5. The surface is smooth,easy welding and machining | |
6. Good chemical stability,acid,alkali,corrosion-resistant | |
7. Against ultraviolet ray, bears the aging, does not absorb water | |
