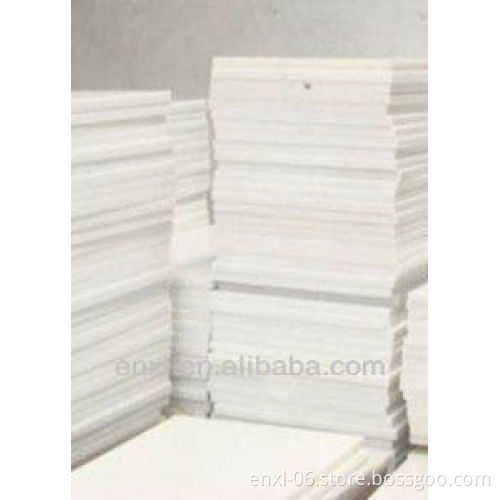

Pure PTFE molded sheet

Specifications PTFE molded sheet

1.good electrical properties

2.lower coefficient of friction

3. chemical resistance

PTFE molded sheet PTFE molded sheet with good corrosion resistance, aging resistance, low coefficient of friction, is used in wide range.teflon sheet has a wide range of practicable temperature from -180C~+260C ,  can be used to make corrosion-resistant liner ,seal ,lining and gasket, scrap, guide rail, dielectric material for different frequency bridge bearing slide.   Application:electric insulation ,anti-caustic material&parts,mechanical sealing and lubrication material.       Specifications:

Thickness (mm)	Tolerance (mm)	Length (mm)	Width (mm)
1~70	+0.2-2	300+	300+
		600+	600+
		800+	800+
2-60	+0.3-2	1000+ 1200+	1000+ 1200+

  Features:

Item	Unit	Data
Tensile Strength	Mpa	≥15.0
Elongation at break	%	≥150
Insulation Strength	KV/mm (AC)	≥10
Density	g/cm3	2.13—2.23
