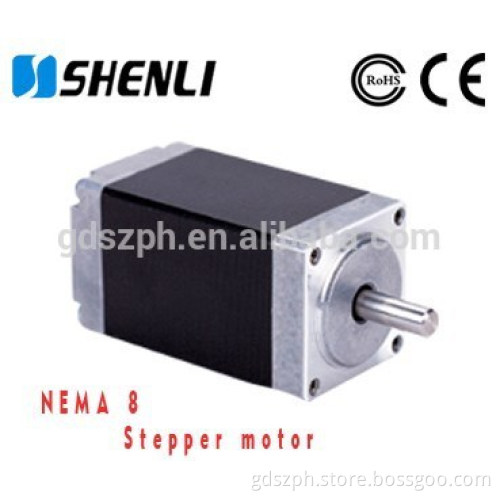

Nema 8 Stepper Motor 2 Phase 20mm Hybrid Stepper Motor
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
General Specifications | |
Step Accuracy | ±5% |
Temperature Rise | 80℃ |
Ambient Temperature Range | -20~+55℃ |
Insulation Resistance | 100MΩ MIN.500V DC |
Dielectric Strength | 500V AC 1 minute |
Model | A:Shaft diameter | B:Shaft length | Features |
SL20S228A | 4 | 35 | Round Shaft |
SL20S230A | 4 | 20 | Round Shaft |
SL20S223B | 4 | 19.4 | Round Shaft |
SL20S238A | 4 | 12.5 | Round Shaft |
SL20S245A | 4 | 12 | Double D Shaft |
Electrical Specifications | ||||||||||
| Series Model | Step Angle (°) | Motor Length (mm) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.M) | Detent Torque (g.cm) | Rotor Inertia (g.cm2) | Lead Wire (NO) | Motor Weight (kg) |
SL20S228A | 1.8 | 28 | 0.2 | 24 | 8 | 0.016 | 0.17 | 0.28 | 4 | 0.5 |
SL20S230A | 1.8 | 30 | 0.5 | 11 | 2 | 0.018 | 0.21 | 0.34 | 6 | 0.6 |
SL20S223B | 1.8 | 33 | 0.6 | 3 | 2.5 | 0.02 | 0.25 | 0.38 | 4 | 0.7 |
SL20S238A | 1.8 | 38 | 0.6 | 10 | 6 | 0.04 | 0.55 | 0.71 | 4 | 0.8 |
SL20S245A | 1.8 | 45 | 0.8 | 12 | 7 | 0.05 | 0.04 | 0.04 | 4 | 0.85 |
