Alibaba China factory IC 6803 5050SMD dream magic color RGB LED Strip Tape Light

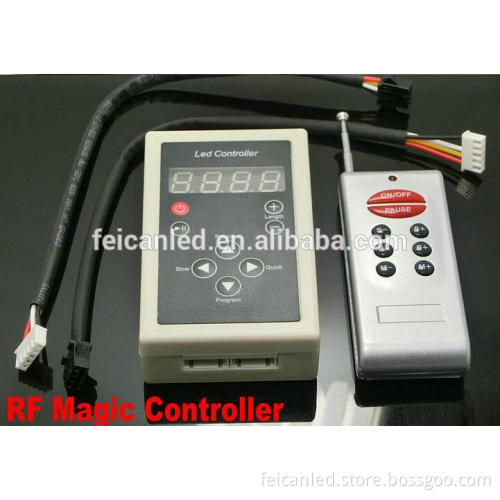

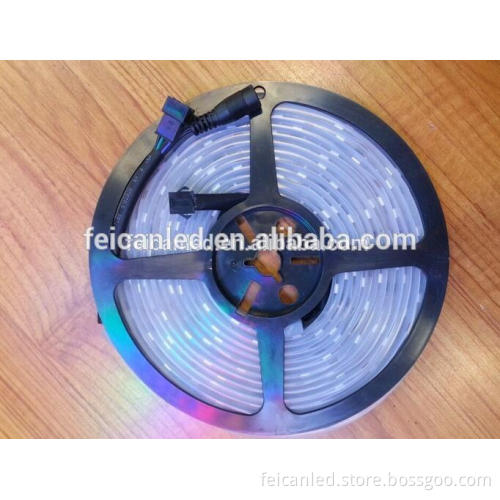

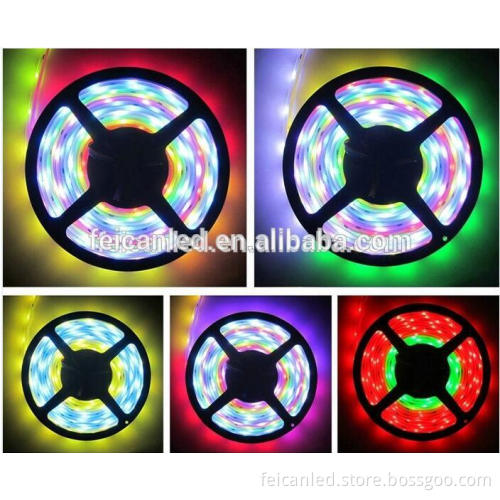

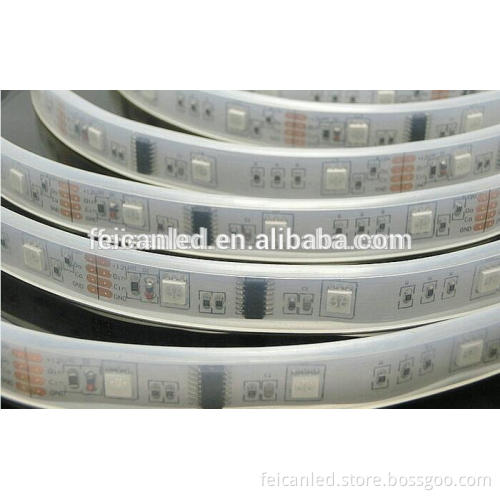

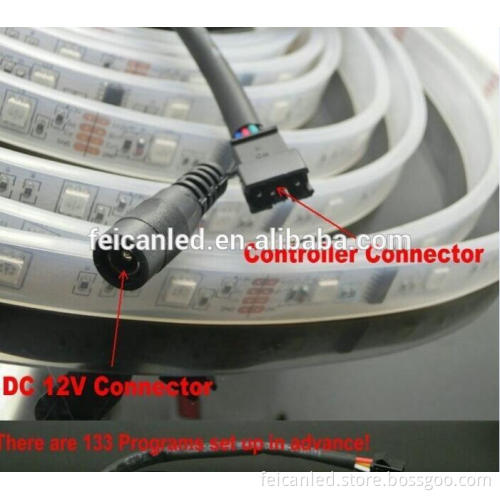

Alibaba China factory IC 6803 5050SMD dream magic color RGB LED Strip Tape Light 6803 LED strip 1. LED Sources: 6803 IC 5050 LED 2. LED Quantity: 30led/m,5m/roll 3. Beam Angle: 120°viewing angle 4. Color: RGB magic color 5. Working Voltage: 12V DC 6. Power Consumption: 7.2w/m 7.Size: 500cm(5M) x 1.2cm x 0.25cm 8. IP67 Waterproof   RF LED CONTROLLER Working temperature:-20-60℃ Supply voltage:DC5V, 12V~24V optional(specify the required supply voltage on orders) Rated power:2.2W Controller size:L94*W58*H25mm Remote control size:L90*W36*H15mm Package size:L135*W80*H55mm Net weight:115g Gross weight:165g Mode:133 kinds changing mode Controlled IC Model:TM16726,TM2801,,WS2811, UCS1903 etc. (specify the required model on orders) Maximum control points:1024 (Low-speed) points, 2048 (High-speed) points Accessories:one pcs of black color DC wire+2 pcs of 4 pins signal wire   This magic controller is suit for LPD6803 (UCS1903/LPD8806,WS2811/TM2801/TM1809 etc) output applications to drive LED directly. It is widely used in advertising, stage sets, home decorations, etc. It has many advantages such as low price, easy connection and simplicity to use. It has power off memory function. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. Direction for use Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power. Then set the steps as follows. The two number appear on the left side of the digital tube is for the Mode function,and the right side two number in the digital tube is to shown the speed level. There are 8 buttons on the controller, the function of the keys are as below: Adopt the radio frequency remote control, there are eight key on the remote control, the key function are as follows: ON/OFF:To turn ON/OFF the output at anytime; Pause: Can play/pause the controlled in order to observe the effect. S+: increase changing speed; S-:decrease changing speed,total 100 changing level; B+: To choose the former mode,total 133 change mode; B-: To choose the next mode; M+:In ON/OFF state, press this key to increase the controlled IC number,max controlled 2048 pcs IC M-:In ON/OFF State,Press this key to decrease the controlled IC number, Min controlled 3 pcs IC Turn OFF the controller, and it will be save automatic.   Typical Applications
