2016 Factory Direct Sale Remote IR 44 Key for 5050 3528 RGB led strip LED Controller

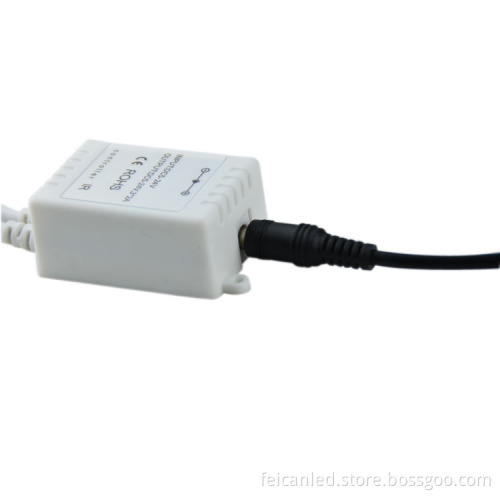

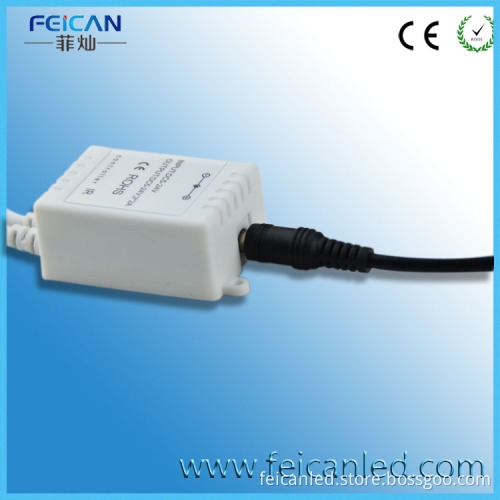

2016 Factory Direct Sale Remote IR 44 Key for 5050 3528 RGB led strip LED Controller    Products Name : IR 44 Keys RGB LED Controller Model No. : FC-PB-I44Q   Summarization : 44-key infrared LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing and other effects of change. Total 44 modes for your choice.   Technical parameters : Working temperature: -20-60 °C Voltage supply: DC5V, 12V, 24V <optional> (for orders specify voltage) Output: 3 channels Connecting mode: common anode or common cathode External dimension: L49.5ΧW34.5ΧH22 mm Net weight: 70g Function Model:34 Models. Static power consumption: <1 W Output current: <2 A (each channel) Output power: 5 V: <30W, 12V: <72W, 24V: <144W    External Dimension : Controller dimension : Direction for use   Connect the load wire at first, following by the power wire; Please ensure short circuit can’t occur between connecting wire before you turn on the power;   Standard color changes as follows : Key instruction : Connecting drawing :
