2015 Hot Selling 3 Channel DMX512 Decoder ,DC 12V, 24V 12A dmx decoder

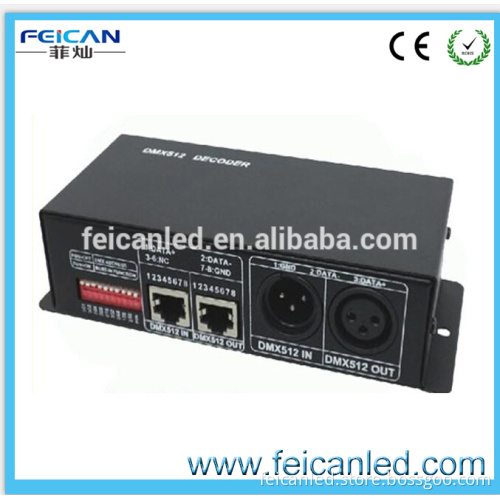

2015 Hot Selling 3 Channel DMX512 Decoder ,DC 12V, 24V  12A dmx decoder     Product Specifications Model number : FC-DMX512-3CH Products name : 3 channel DMX512 decoder   Product Description This DMX decoder adopts advanced computer control chip,can receive the international DMX - 512 standard digital control signals and converted into PWM controller signal to drive the LED.It can be controlled by the DMX Console,and can connected with numbers of DMX Decoder to increase the output power to realize all kinds of changing mode.Besides, this DMX decoder can be used as the synchronous controller to controlled the LED alone,it can realize the synchronous effects.This decoder adopt the digital tube to show the address code,and with 3 buttons to setting,make it more easy to used. Technical Parameters Working temperature: -20-60 °C Supply voltage: DC12~24V Output: 3 channels External dimension: L177×W42×H33mm Packing size: L180×W95×H60(mm) Net weight: 201g Gross weight: 245g Static power consumption: <1W Output current: each channel 4A Output power: 12V:<192W, 24V:<384W DMX512standard:DMX512/1990   Connection description : DMX Input/output interface:RJ45 Port   Address code and function Setting Button :   Power input and Load output interface :   Used plug with screw.     Direction for use : Setting of address code Each universal DMX takes up 3 DMX address,it adopts code on-off to set up the address code.the code switch from 1-9 functions as binary system code switch for setting DMX starting address code.The first bit is the lowest order bit and the ninth is the highest order bit that can set 511 address codes in total. The DMX starting address code is equal to the sum of 1 st to 9th bit. If move down one bit of code switch(“on” set”1”),you can get the place value of this bit. If move up (set “0”) the place value is 0. When the code switch FUN=OFF(ON “0”),It can receive the signal of DMX512.Please to choose the channel from the dial in-line package(DIP)switch. Example 1: Like figure1, to set up the DMX starting address code for 37,should move down the 6th,3th,1st bit for “1”,other for “0”.then the placevalue’s sum of 1st to 9th bit is 32+4+1,as is for 37.the following is 38,39,40.     Example 2; Like figue2, to set up the DMX starting address code for 328,should move down the 9th,7th,4th bit for “1”.others for “0”.then placevalue’s sum of 1st to 9th bit is 256+64+8,as is for 328.the following is 329,330,331.   Other function’s direction for use Test function: The DIP switch’s 10th bit is “FUN”,for Built-in function key.when “fun”=”off”,is DMX decoder function.this is used to adopt   Typical Application:       Cautions 1.This products Input voltage is DC12~24V,other input voltage are not allowed. 2.Lead wire should be connected correctly, according to the wire color and the connecting diagram offers. 3.Overload are prohibited.
