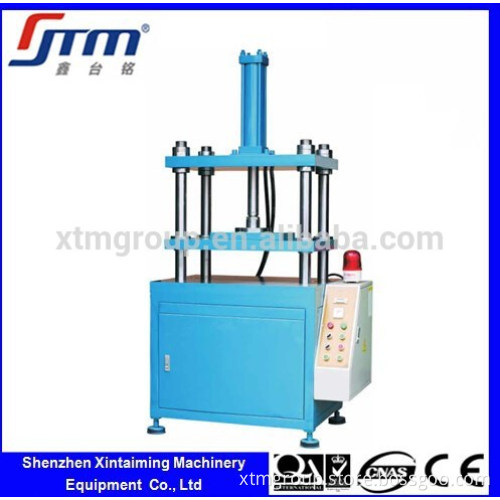

Four Column Manua And Semi-automatic Portable Hydraulic Press Die Cutting Machine
- Delivery Time:
- 15 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Guangdong, China (Mainland) |
---|
Product Description
Product Description
Specifications Portable Hydraulic Press Die Cutting Machine
1.Four Columns
2.High precision, up to 0.01mm
3.ISO/CE
4.20 Years Factory
Four Column Manua And Semi-automatic Portable Hydraulic Press Die Cutting Machine Product Description Features 1.Low energy consumption
Hydraulic power actuation of 1-14MPA; Three-phase alternating-current supply; AC380V 50HZ or AC220 60 HZ; Total consumptions of electricity of less than 3.7KW. 2. High precision
Grad of parallelism between the active platen and the work platform: more than 0.08mm. 3. Intelligent functions, convenient operation
Grad of repeat precision: better than 0.01mm, entirely make sure the cutting precision; 4. customized available Standard cutting area: 520mm*350mm (Very close to the size of a 21 inch LCD display). Customized available; 5.Pressing force, stroke of cutting, die height could be adjusted manually; 6.Scope of output: 3 ton to 50 ton (Customized available).
Machine Images The following machines are made according to the customer's requirements .

Technical Parameter
Introduction
--------------------------------------------------------------------------------------------------------------------------------------------------------------
Scope of Application The machine is widely used in a variety of cell phone, digital camera, laptop LCD screen protective
film cutting, cut half off of all kinds of stickers , etc. For use of non-oriented simple's cutting die, the
vast number of mobile phone industry, the computer industry's must-line to the requipment.
Company Information About us
Shenzhen Xintaiming Machinery Equipment Co., Ltd is a professional researching and developing
manufacturer specialized in the designing and making: 1) CNC Servo press series 2) CNC hydraulic machines 3) MD/IML 3D punching machine 4) IMD/IML hot press molding machine 5) High speed punching machine 6) Hydraulic stamping/embossing/cutting /drawing press machine and so on
Our products have been exported to Germany, Hungary, Russia, India, Indonesia, Thailand,
Vietnam,the United States, Italy, Saudi Arabia, South Africa, Australia, Iran and so on more
than 30 countries and regions
Benefits & Advantages 1. We master the latest hydraulic and quality control technologies and have 20 years of
worldwide manufacturing experience. 2. 200 emplyees and more than 20 senior engineers and 10 quality control persons. 3. Machines can be customized to meet your specific needs and requirements. 4. 10000 square meters factory area.
Why Choose us?
Our Services Pre-sale Analysing the customer's need with great care Select the suitable model of machine Providing perfect solution with accurate machine specification Sales Provide video of machine operation Provide training for operator After-sale One year of warranty. Offering the according parts for free exclude man-made errors within the period of
guarantee.
Offer overseas service if we(the Two Parties) come to an overseas service agreement. FAQ Question 1: Is your company a factory or a trading company? Answer: We are a professional manufacturer with 20 years of worldwide hydraulic
manufacturing experience, and we have a body of professional engineers. Question 2: How could I get more informations about machine from you?
Answer: You could click “contact supplier” to leave us messages or send us email,
fax or phone us, telling us what informations you want (such as detailed
machine information, prices, terms of shipment and so on), we will reply
you as soon as possible, then you will know better about our products and
service. Question 3: How does the machine quality? Answer: a. Our customers are from more than 30 countries and regions. b. We have ISO 9001:2008 and CE approved. c. Our parts brand are from Japan, Germany, Taiwan and other famous suppliers
from China. All key parts will be listed in the Purchase Order. d. Before packing machine, we debug the machine (We call Factory Acceptance
Test). Meanwhile, there will be video giving to you(FAT video) Question 4: When the machine is mal-functional, how can we do? Answer: Any error (not man-made) happens within the period of guarantee, we offer the according parts for free. Of course, we will offer overseas service if we(the Two Parties)
can come to an overseas service agreement.
1.Four Columns
2.High precision, up to 0.01mm
3.ISO/CE
4.20 Years Factory
Four Column Manua And Semi-automatic Portable Hydraulic Press Die Cutting Machine Product Description Features 1.Low energy consumption
Hydraulic power actuation of 1-14MPA; Three-phase alternating-current supply; AC380V 50HZ or AC220 60 HZ; Total consumptions of electricity of less than 3.7KW. 2. High precision
Grad of parallelism between the active platen and the work platform: more than 0.08mm. 3. Intelligent functions, convenient operation
Grad of repeat precision: better than 0.01mm, entirely make sure the cutting precision; 4. customized available Standard cutting area: 520mm*350mm (Very close to the size of a 21 inch LCD display). Customized available; 5.Pressing force, stroke of cutting, die height could be adjusted manually; 6.Scope of output: 3 ton to 50 ton (Customized available).
Machine Images The following machines are made according to the customer's requirements .


Technical Parameter
model | operating surface size(mm) | theoretic output pressure(ton) | max.operating height (mm) | cylinder stroke(mm) | power supply | motor power(kw) |
XTM-105H-3T | 400*300 | 1-3 | 170 | 100-150 | 3Ø380V,50/60Hz | 2.25 |
XTM-105H-5T | 520*350 | 1.5-5 | 170 | 100-150 | 3Ø380V,50/60Hz | 2.25 |
XTM-105H-10T | 520*350 | 3-10 | 170 | 150-200 | 3Ø380V,50/60Hz | 3.75 |
XTM-105H-15T | 600*500 | 5-15 | 170 | 150-200 | 3Ø380V,50/60Hz | 3.75 |
Introduction

--------------------------------------------------------------------------------------------------------------------------------------------------------------
Scope of Application The machine is widely used in a variety of cell phone, digital camera, laptop LCD screen protective
film cutting, cut half off of all kinds of stickers , etc. For use of non-oriented simple's cutting die, the
vast number of mobile phone industry, the computer industry's must-line to the requipment.


Shenzhen Xintaiming Machinery Equipment Co., Ltd is a professional researching and developing
manufacturer specialized in the designing and making: 1) CNC Servo press series 2) CNC hydraulic machines 3) MD/IML 3D punching machine 4) IMD/IML hot press molding machine 5) High speed punching machine 6) Hydraulic stamping/embossing/cutting /drawing press machine and so on

Vietnam,the United States, Italy, Saudi Arabia, South Africa, Australia, Iran and so on more
than 30 countries and regions
Benefits & Advantages 1. We master the latest hydraulic and quality control technologies and have 20 years of
worldwide manufacturing experience. 2. 200 emplyees and more than 20 senior engineers and 10 quality control persons. 3. Machines can be customized to meet your specific needs and requirements. 4. 10000 square meters factory area.




guarantee.
Offer overseas service if we(the Two Parties) come to an overseas service agreement. FAQ Question 1: Is your company a factory or a trading company? Answer: We are a professional manufacturer with 20 years of worldwide hydraulic
manufacturing experience, and we have a body of professional engineers. Question 2: How could I get more informations about machine from you?
Answer: You could click “contact supplier” to leave us messages or send us email,
fax or phone us, telling us what informations you want (such as detailed
machine information, prices, terms of shipment and so on), we will reply
you as soon as possible, then you will know better about our products and
service. Question 3: How does the machine quality? Answer: a. Our customers are from more than 30 countries and regions. b. We have ISO 9001:2008 and CE approved. c. Our parts brand are from Japan, Germany, Taiwan and other famous suppliers
from China. All key parts will be listed in the Purchase Order. d. Before packing machine, we debug the machine (We call Factory Acceptance
Test). Meanwhile, there will be video giving to you(FAT video) Question 4: When the machine is mal-functional, how can we do? Answer: Any error (not man-made) happens within the period of guarantee, we offer the according parts for free. Of course, we will offer overseas service if we(the Two Parties)
can come to an overseas service agreement.
