Top Quality Industrial Multilayers Rubber Vulcanizing Press With ISO / CE

Specifications Rubber Vulcanizing Press

PLC Control;

Double-Layer or Triple-Layer Mould;

Highly Accuratly Mold Position;

20 Years Factory.

Top Quality Industrial Multilayers Rubber Vulcanizing Press With ISO / CE

Product Description

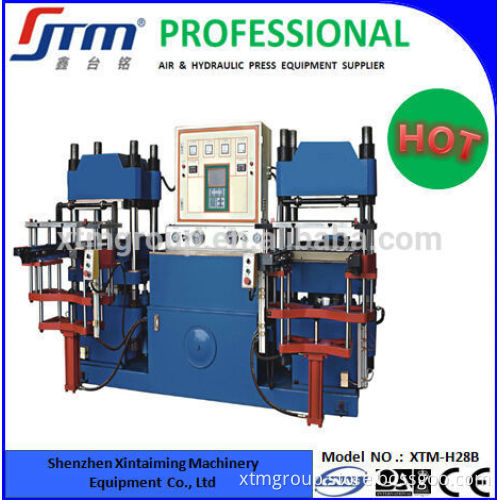

  Top Quality High Yield Rubber Vulcanizing Press

 1.  Frame of 4-column 3-plate design for high grde of parallelism between the active plate and
the work platform, and leads to high precision of pressing.

  2. Process control such as pressing, venting and machine protecting via PLC control system, with color screen touch controller.

  3. Slow speed of alignment adjusting is provided to make the molds calibration more safe.

  4. Two-stage speed control with sliding block, high speed closing and low speed profiling pressing, high speed back stroke.

  5. Ideal of double SLC (Security Light Curtain) makes it safe of operation.

  6. Overload protection device and overrun switch is available.



Technical Parameter

Model		Unit	H28B-100T	H28B-200T	H28B - 300T	H28B - 400T	H28B-500T
Main Cylinder nominal force		KN	1000/1000	2000/2000	3000/3000	4000/4000	5000/5000
Max. Stroke of Ram		mm	250	250	250	250	350
Dimension of Haeting Plate		mm	450*460	550*560	600*660	650*660	650*660
Power of Heating Plate		KW	7.2/7.2	10.2/10.2	12.1/12.1	12.1/12.1	12.1/12.1
Overall size	L-R	mm	2750	3100	3320	3460	3720
	F-B	mm	2300	2500	2610	2750	2850
	H	mm	1620	1820	2150	2200	2300
Motor power		KW	5.5/5.5	7.5/7.5	11/11	11/11	11/11
Approx.Total Weight		T	6	8	12	13.5	1

    Operation Procedure
1.Mould of Hydraulic Prss Rubber Vulcanization, Rubber Vulcanizer closing, entry, and pressing.       2.Muld of Hydraulic Prss Rubber Vulcanization, Rubber Vulcanizer opening, exit, and upper mold plate opening angle to 90°.



Scope of Application
     Top Quality High Yield Rubber Vulcanizing Press

 XTM-H28B is applicable for press forming of vulcanized rubber product, thermosetting material, magnetic material, sealing element, electronic element, durable appliance and other sintered metal products.
