Full automatic hydraulic shaping machine Hydraulic shaping machine

Features of MIM products:
1, the degree of freedom of the parts and components of the high degree of freedom, like the production of plastic products, the production of a complex shape metal parts,
2, MIM product density uniformity, good finish, the surface roughness can reach Ra 0.80 ~ 1.6 m, weight range of 0.1 ~ 200g. High dimensional accuracy (+ 0.1% ~ + 0.3%), generally do not require subsequent processing.
3, suitable for wide range of materials, wide range of application, high raw material utilization rate, high degree of automation, the process is simple, can achieve continuous mass production.
4, the product quality is stable, the performance is reliable, the relative density of the product can reach 95% ~ 99%, can carry on the heat treatment of carburizing, quenching, tempering, etc.. Product strength, hardness, elongation and other mechanical properties, such as high mechanical properties, good wear resistance, fatigue resistance, uniform organization
It is generally believed that the development of MIM technology will lead to a revolution in parts forming and processing technology, known as the forming technology of the hottest parts in twenty-first Century ". Therefore, it is generally believed that the development of MIM technology will lead to a revolution in parts forming and processing technology, known as "the most popular parts forming technology" and "forming technology" in twenty-first Century ". Metal injection molding (metal injection molding (MIM) is will modern plastic injection forming technology into the field of powder metallurgy and the formation of a new metal parts near net shape forming technology, in recent years, powder metallurgy disciplines and industrial sectors in developing very rapidly in a new and high technology.
Automatic metal injection molding machine: the need to process products and equipment: according to the actual product design.
Work flow:
1 the workpiece on the artificial vibration plate, and press the start button;
2 vibration plate will be sent to the workpiece feeding mechanism, and in accordance with the requirements of row;
3 the workpiece is removed from the workpiece and placed in the tool;
4 rotary disk work, will be put to work to press the position of the workpiece;
5 hydraulic press action to complete the work of the pressure loading, while feeding on the mechanical hand;
The 6 rotary disk is pressed to the workpiece to be sent to the next station, and the material is removed by the manipulator;
Repeat above action.
Characteristics of equipment:
1, high efficiency, time saving, labor saving;
2, improve product quality, quality and stability;
3, product compatibility, high stability;
4, centralized and interlocking control;

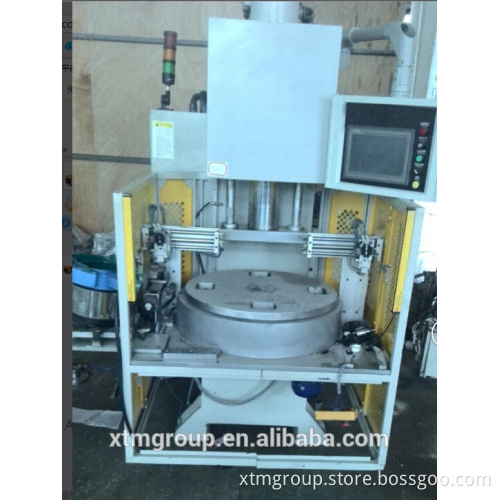

Automatic shaping mechanism:
The hydraulic press (hydraulic press), the hydraulic press with the mold to use, to achieve the effect of pressure shaping.
Rotating station (dividing plate), transfer the role of the workpiece.
The automatic feeding device, reclaimer (manipulator, vibration plate), loading and unloading, workpiece transfer function.
The control part, the use of PLC and touch screen
Automatic plastic machine application products:
Now widely used in commonly used spare parts of electronic products, such as mobile phones, IPD and camera trim, phone cards groove, Cato and other small parts (MIM metal injection), at present the company Tongda Group, Jin Sheng group's has gradually use automatically. Shaping machine to improve efficiency (before the use of ordinary hydraulic machine production).
