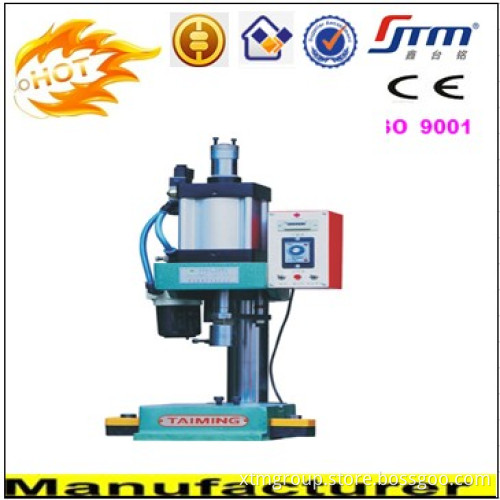

XTM-101 Pneumatic Press

Specifications Pneumatic Press

1.Air pressure

2.Lower consumption of electrcity

3.Easy adjustable

4.Operation security

XTM-101 Pneumatic Press  machine feature : 1.less noise ,lower consumption of electricity and low cost of production 2.adjustable cylinder stroke and customized cylinder stroke as per clinents' request 3.a thermal mold, temperature controler or a load cell could be fed into the machine as per customer request to meet paticular precessing requirements 4.this effictive working patform can be customized to fit specific costomer needs ,quality and trust, creativity,manufacturing expertise scope of application: Assembling, Micro Motor Axis Press-in, riveting, punching and light cutting and other similar processing works.

model	output(kg)	tavelling schedule(mm)	cylinder inside diameter(mm)	stroke adjusrment(mm)	biggest operationla height (mm)	weight(kg)
xtm-101-100	100	100	Ø63	50	300	27
xtm-101-300	300	100	Ø80	50	300	43
xtm-101-500	500	100	Ø100	50	300	47
xtm-101-800	800	100	Ø125	50	270	90
xtm-101-1200	1200	100	Ø160	50	270	103
xtm-101-2200	2200	100	Ø200	50	270	165
