New condition and hydraulic hot press machine type hydraulic hot press 100T

Specifications hydraulic hot press machine , hydraulic hot press 100T

Optimized design of hydraulic system;

temperature & pressure adjust

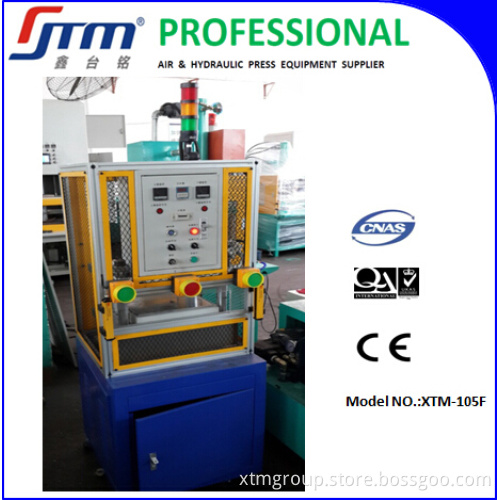

New condition and hydraulic hot press machine type hydraulic hot press 100T

Product Description

New condition and hydraulic hot press machine type hydraulic hot press 100T is a new type excellent performance hydraulic hot press. portable, easy, safe and convenience to operate.  Adopts advanced cartridge valve blocks  technology, good performance of rapidly close and slowly press.  High  precision, high speed.  Operated by double-button switch.  Selector switch modes of operation:jog (setup) and run (cycle).  Flexibly adjustable pressure dwell time and stroke.  Idea of doubled SLC(Security Light Curtain) makes it safe of operation.  Front Side Covers with emergencey switches.  Oil seals  adopts  ring-oriented technology, good performance of oil anti-leakage.   All pipes, flange and joint with vibrations proof and leakage proof design and setting.

Model of hydraulic hot press machine 100T

  1.standard type hydraulic hot press (four column down stroke)



2.H frame hot press (up stroke)



3.  H frame hot press (up stroke,machine body and hydraulic station separate)

4.Multi-layers hydraulic hot press


5.Hydraulic hot press with CNC control and conputer-human interface touch screen
controller



Highlight of hydraulic hot press machine 100T       1.  Frame of 4-column 3-plate or H frame design for high grde of parallelism between the active plate and the work platform,and leads to high precision of pressing.       2.Tempreature of slide and baseplate can be controled separately.       3.Temperature of the same plate differs not more than 6%.




  Technical Parameter

Model		Unit	105F-5T	105F-10T	105F-15T	105F-25T
Cylinder nominal force		KN	50	100	150	250
Max. hydraulic pressure		MPa	8.5	17	15.6	20.4
Height of the table above floor		mm	780	780	780	780
Max. stroke of ram		mm	200	250	250	300
shut height	Max.	mm	210	260	260	400
dimension of table	L-R	mm	500	500	600	600
	F-B		240	300	400	400
Speed of slide	rapid close	mm/s	90	90	78	60
	slow press		13.5	8.5	9	11
	return		90	90	100	100
Power of motor		KW	2.2	2.2	3.7	3.7
overall dimension		mm	700*600*1940	700*600*1940	700*600*1940	700*600*1940

Note: your requirements of the machine specification of the hydraulic hot press 100T can be customization supported.

Scope of Application
Hydraulic hot press machine 100Tcan be widely uesd in:

1. Die cutting of the silica gel and plastic buttons of various handsets or remote controls.   2. Whole or partial cutting of plastic product.   3. Cutting of protective film of LCD screens for different sizes.   4. Precise cutting and half cutting of adhensive tapes.   5. Bulging and forming for various switches film and plate flim made of PV, PE, PC, etc.   6. Pressing and forming of flexible circuits for notebook computer keyboards.
