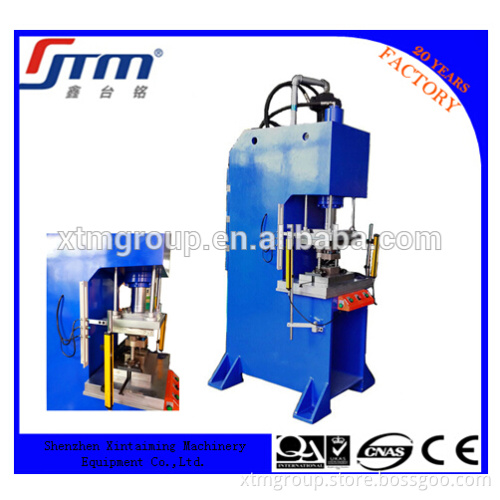

China Famous C-frame Hydraulic Press Machine, Vertical C-frame Hydraulic Press Machine for Embossing / Shaping

China Famous C-frame Hydraulic Press Machine, Vertical C-frame Hydraulic Press Machine  for Embossing / Shaping     Shenzhen Xintaiming Machinery Equipment Co., Ltd. is professional researching and developing manufacturer which is specialized in the designing and making CNC Servo press series, CNC C-type hydraulic machine, IMD/IML 3D punching machine, IMD/IML hot press molding machine, Hydraulic cutting /punching/molding/bending/hot press machine, XTM series four-column single-acting upper displacement oil press and so on.   Our products have been exported to Germany, Hungary, Russia, India, Indonesia, Thailand, Vietnam, the United States, Mexico, Brazil Italy, Saudi Arabia, Bahrain, South Africa, Australia, Iran and so on more than 30 countries  and regions.
  Machine Application Scope: With multi-purpose of press, the series hydraulic press, it could be comprehensively used in a variety of materials, punching, stamping,shaping, riveting, bending, shear, tension, various small parts of the press-fit assembly.        Machine Features: 1.Driven by hydraulic pressure generated by motor, adopts advanced dual oil cylinder and hydraulic circuit, causes low heat while operates at a speed of more than 150mm per second; 2.Hydraulic pressure actuation of 1-14MPA, three-phase alternating current supply, AC380V 50HZ or AC220 60 HZ, total consumptions of electricity of less than 3.7KW(Power supply as per customer request also).   3.The frame adopts integrity welding technology with better regidity and stability of machine while wide convenient operation space;   4.Pressing force, stroke of cutting, dwell time, die height could be adjusted manually comply with practical demand;   5.Intelligent functions: intelligent counter, force measurement monitor, intelligent temperature controller(Customized available).   6.Range of output force: 15ft-100ft.(Optionally).
Company Advantages: 1. We manufacturesthe hydraulic and Pneumatic Presses machine and provides the overall service. 2. We master the latest hydraulic and control technologies and have 20 years of worldwide manufacturing expertise. 3. We have a body of engineers with years of experience   4. Presses can be customized to meet your specific needs and requirements.   5. A large-scale  factory.         Technical Parameter: (Technical parameter can be customized according to your special need ):

Model			XTM107-10	XTM107K-10	XTM107K-20	XTM107K-30	XTM107S-50
Nominal Force			10T	10T	20T	30T	50T
MAx. Hydraulic Working Pressure			12.5MPa	12.5MPa	11.1MPa	15Mpa	16MPa
Knock-out Force			7.8T	7.8T	2.5T	3.7T	5T
Worktable Height			750mm	750mm	750mm	750mm	750mm
Max. Operational Height			400mm	400mm	400mm	400mm	400mm
Max. Stroke			300mm	300mm	300mm	300mm	300mm
Dimensions of the Table	L-R		500mm	500mm	600mm	600mm	600mm
	F-B		400mm	400mm	400mm	400mm	400mm
Speed of Slide	Descending Speed		≥ 68mm/s	≥200mm/s	≥143mm/s	≥143mm/s	≥143mm/s
	Pressing Speed		≥68mm/s	≥19mm/s	≥12mm/s	≥12mm/s	≥12mm/s
	Returning Speed		≥91mm/s	≥100mm/s	≥100mm/s	≥100mm/s	≥100mm/s
Overall Size of the Machine			650×720×1850(mm)	650×720×1850(mm)	650×720×1900(mm)	650×720×1900(mm)	650×720×1900(mm)
Power of Motor			2.2KW	2.2KW	3.7KW	3.7KW	3.7KW

    Related Product Pictures:





Company Strength:


      Customers' Visit to XTM: Certification:   High Quality C-frame Hydraulic Press Machine for Embossing / Shaping / Shallow Drawing CE Approved
