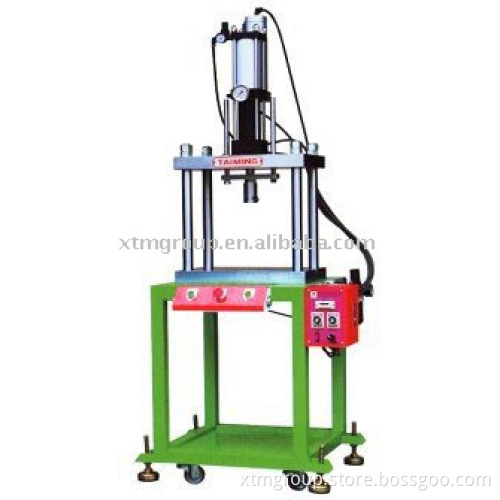

2011 Strong Turbo-Boost Press

Specifications 2011 Strong Turbo-Boost Press

1.Air actuation

2.Simple operation system

3.Makes less noise

4.High repeatability

2011 Strong Turbo-Boost Press
Product features: 1.Compressed air actuation, simple, easy and convenient to operate;                     2.Core hydraulic circuit system makes less noise, low consumption of  electricity;   3.The use of thery of turbo-boost makes the machine work faster;    4.Adjustable output, speed of moving up and down, Cylinder Stroke, Shut Height, dwell time and the auto-counter make this machine an ideal frind of processing industry;    Technical Parameters:

Item	XTM-pro 102-3	XTM-pro 102-5	XTM-pro 102-10	XTM-pro 102-15
Max.Daylight/mm	200	200	250	250
Fast Stroke/mm	100-200	100-200	100-200	100-200
Turbo-charged Stroke/mm	5-20	5-20	5-20	5-20
Table size/mm	400*300	400*300	500*400	500*400
Power Supply	AC220V,50/60Hz	AC220V,50/60Hz	AC220V,50/60Hz	AC220V,50/60Hz
Operating Pressure/MPA	0.4-0.7	0.4-0.7	0.4-0.7	0.4-0.7

  Scope of Applications: 1. electric applicationsRelay)                         2. Clock fittings                                        More referehtial images:       Factory Overview & Workshop & Clients Visitation & Exhibitions
