GPS OBD Tracker - OBD Vehicle Tracker GPS+GSM+SMS/GPRS+OBD

Specifications 1.OBD II Plug Interface

2.Internal GPS and GSM Antenna

3. Dual communication mode (GPRS & SMS)

4. Real-Time Tracking

OBDII Tracker is vehicle OBD Tracker products with the help of a GPS satellite positioning, OBD auto diagnostic system, GPRS communication, the Internet, and through the powerful WEB service platform, It could achieve real-time remote positioning monitoring and remote vehicle diagnostic. Help customers to implement transparent management, reduce costs, ensure safety, increase efficiency. At present has been widely used in commercial transportation, logistics, corporate fleets, car rental, intelligent transportation, engineering machinery, ship navigation, emergency command, emergency rescue, police safety, wisdom city.     Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, OBD II GPS Tracker, OBD 2 Tracking, Car On-Board Diagnostics Tracking, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management     Application   DRIVERS - Receive location, route and vehicle condition assistance automatically, anytime and anywhere.
TECHNICIANS - Remote vehicle diagnostics protects equipment and drivers.
OPERATIONS - Use real-time visibility to run operations more efficiently and safely.
DISPATCHERS - Plan and adjust routes more effectively and immediately.
SERVICE MANAGERS - Answer location inquiries faster and accurately.
RISK MANAGERS - Ensure regulatory compliance because unplanned incidents are reduced.
ACCOUNTANTS - Measure cost savings and increased customer satisfaction realized.
IT MANAGERS - Save valuable resources, with no demands on existing IT infrastructure or personnel.
EXECUTIVES - Increase value, through gains in productivity and utilization.     Cars Diagnostic System record function

  · GSM: Quad Band, Can be used all over the world · Easiest Installation, Plug Into Vehicle OBD Port · Continuous GPS Tracking, OBD Real-time parameters, GPRS regular reporting. · Vehicle tracking, PC, mobile phones, SMS remote query. · OBD Rotating Speed detection, vehicle status alerts, the data accuracy better than the Acc One. · Vehicle Collision Drop Alerts through SMS, Platform (optional)     Environment for use   1.       Limited working temperature:-20°C~80°C 2.       Storage temperature:-45°C~90°C 3.       Humidity:<95% 4.       OBD II Plug Interface     Basic Specifications:

Working Voltage:	12VDC/24VDC
Standby Current	<3mA
Work current :	<120mA
GPS positioning accuracy	15M
GSM positioning accuracy	100M
GPS Frequency	1575MHz
GSM Frequency :	850/900/1800/1900MHz
Hot/warm/cold start time :	<3S,<1S,<60S
Dimensions (mm) L*W*H :	L*W*H:   56.5 X 47 X 24.6
Weight :	45 g

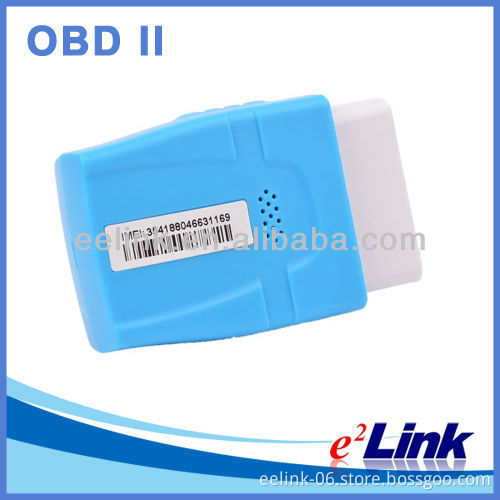

      This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option     GPS Tracking Diagnostics System           Detail picture  Front Side         Back Side     GPS Tracking System                                                                                                                      1) Geo-fence Alarm      2)Add device with protocol you need       3)GPS tracking Statistics report       Office and Laboratory     Factory SMT Workshop      Factory Cable Assembly  Workshop        Company Certificate Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
