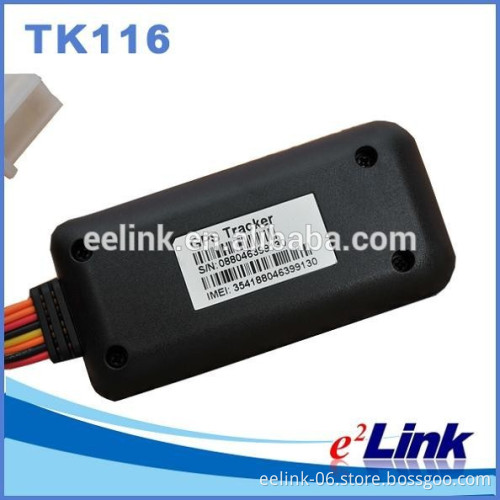

Wholesale GPS Tracker TK116 , Factory Price for Universal Vehicles

  Wholesale GPS Tracker TK116 , Factory Price for Universal Vehicles     TK116-- GPS vehicle tracking device have a very wide range of industrial and civil applications, is a powerful GPS tracking device, 6-36 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor and SOS distress. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners.          Product Features   *Supports quad bands,i.e. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage:6-36V DC.
*A-GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle..
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install     ALARM TYPE: Vibration Alarm(Optional) Collision / falling Alarm(Optional) Speed Alarm Geo-fence Alarm Power disconnect Alarm SOS Alarm(need SOS Cable)     Function Extension

Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application   Specifications

Voltage	12VDC/24VDC/36VDC
Work current	<30mA@12V
Standby Current	<10mA@12V
GPS positioning accuracy	15m
GSM positioning accuracy	100m
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/warm/cold start time	<3s,<15s,<60s
Battery capacity	200mAh
Dimensions (mm)	79.5(L)X38.5(W)X10.5(H)
Operating temperature	-20°C~70°C
Operating humidity	20%~80%RH
Net Weight	45 g

      GPS Tracking Solutions   Detail picture            GPS Tracking System                                                                                                                      1) Geo-fence Alarm      2)Add device with protocol you need       3)GPS tracking Statistics report         Package

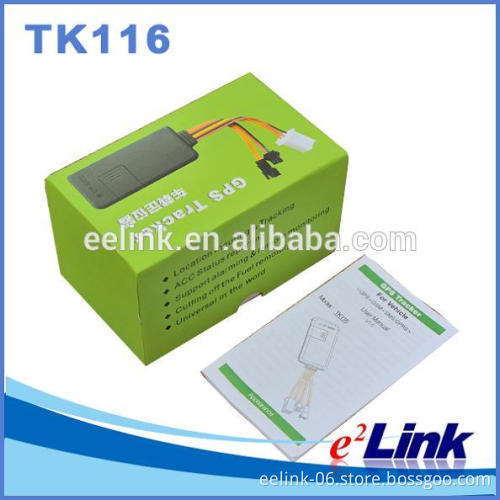

Packing List	1 x GPS (5cm)
	1 x Power cable (100cm)
	1 x Microphone (150cm)
	1 x SOS button
	1 x English user manual
	1 x Chinese / English instruction manual
