GPS Lbs Tracking Device With tracking System and Tracking Solutions

Specifications 1.A-GPS + GSM (LBS) Tracking

2.Web/phone app platform and SMS query

3.Use relay to remotely control

4.MIC to remotely monitor

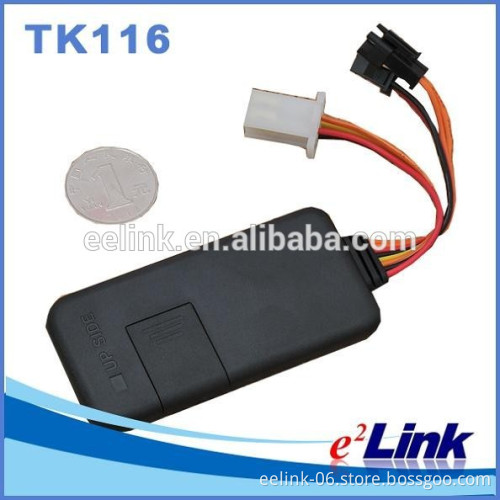

GPS Lbs Tracking Device With tracking System and Tracking Solutions   TK116-- GPS Tracker have a very wide range of industrial and civil applications, is a powerful GPS tracking device, 6-36 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor and SOS distress. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners.   Product Features   *Supports quad bands,i.e. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage:6-36V DC.
*A-GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle..
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install     ALARM TYPE: Vibration Alarm(Optional) Collision / falling Alarm(Optional) Speed Alarm Geo-fence Alarm Power disconnect Alarm SOS Alarm(need SOS Cable)   Function Extension

Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application       GPS Tracking Solutions   Detail picture   Specifications

Voltage	12VDC/24VDC/36VDC
Work current	<30mA@12V
Standby Current	<10mA@12V
GPS positioning accuracy	15m
GSM positioning accuracy	100m
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/warm/cold start time	<3s,<15s,<60s
Battery capacity	200mAh
Dimensions (mm)	79.5(L)X38.5(W)X10.5(H)
Operating temperature	-20°C~70°C
Operating humidity	20%~80%RH
Net Weight	45 g

    GPS tracking solutions for kids and elderly people
Eelink understands the need of people looking for gps tracking solutions and that's why it has special gps tracking solutions which are useful for tracking kids and elderly people. These gps tracking solutions made especially for you to track your kids can definitely help you out as they are very easy to use and always show perfect position.
GPS tracking solutions for those who worrying about car stolen
If many vehicles are used by you for your business then you may be afraid that any vehicle can get stolen any time as costly vehicles are always at the risk of theft. The gps tracking solutionsavailable at Eelink come with features which will completely protect your vehicles from getting stolen. Many people who have bought gps tracking solutions now feel no risk of their vehicle getting stolen.
Find some of the best mini gps tracking solutions from Eelink
Mini gps tracking solutions are in demand these days as they are easy to carry and use. Some people consider mini gps tracking devices as the best gps tracking solutions and hence you should never forget checking out them. Mini gps tracking solutions may be the perfect choice for you if you don't want to replace the gps tracking solutions which you are already using. You can check out the mini gps tracking solutions of Eelink brand available.
Whenever you will visit eelink you will be every time able to see new variety of gps tracking solutions. Very few online stores specialize in selling gps tracking solutions and that's eelink which specializes in selling such best gps tracking devices has become one of the best online stores for many people looking for gps tracking solutions at an affordable price   GPS Tracking System                                                                                                                      1) Geo-fence Alarm      2)Add device with protocol you need       3)GPS tracking Statistics report         Package

Packing List	1 x GPS (5cm)
	1 x Power cable (100cm)
	1 x Microphone (150cm)
	1 x SOS button
	1 x English user manual
	1 x Chinese / English instruction manual

        Office and Laboratory     Factory SMT Workshop      Factory Cable Assembly  Workshop        Company Certificate Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
