2016 New 3G network gps tracker, 3G car tracker small size with Extend I/O port IP67 waterproof

The TK119-W 3G Vehicle GPS Tracker is small in size and is an Installable with a Extend I/O port there are also 2 input/output hardware configurations that let you choose the one the best for your applications.
It a 3G/GSM module which makes this device more usable where 2G networks are beginning to be shut down as in most areas.
3G/GSM module also allows to upload data to server more faster in 3G network, this device will also switch between the 3G & 2G networks automatically depending on whatever signal is strong   Applications: •Fleet management •Trailer management •Workforce management •Delivery truck dispatch •Vehicle recovery •Caravan security •Heavy machinery tracking •Logistics for temperature-controlled supply chain •PAYD (Pay As You Drive) insurance   Product Features 1. GSM/GPRS/EDGE, WCDMA(UMTS/HSDPA) WCDMA850/1900/2100MHz GSM 850/900/1800/1900MHz universal in the world 2. Operating Voltage range: 6-36 V DC 3.Dual model, GPS & LBS positioning. 4.GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback. 5.Supports ACC status checking and vehicle status notifying. 6.Built-in battery, Power disconnect alarm & Low battery alarm. 7.Built-in G-sensor ,Vibration, collision and falling alarm. 8.GEO-fence alarm, speed & shift alarm. 9.Use relay to remotely cut off petrol/power, Cut off petrol or power by SMS command.. 10. Extend I/O port to add extension function 11. Multiple protocol support, can be integrated to platform of customers 12. Firmware/configuration upgrade program Over the air(OTA). 13. Water proof level IP67   Tracking System WEB/APP: •Real time Tracking •Route Play Back •Cut Oil (Need Relay) •Vibration Alarm •Collision / Falling Alarm •Speed Alarm •Geo fence Alarm •Power Disconnect Alarm •Low Battery Alarm   Alarm Type Speed Alarm Geo-fence Alarm Shift Alarm Vibration / Collision / falling Alarm Low battery/ External power cut alarm   Function interface: power supplies, relay, ACC Extension interface: GPIO extension interface, used to increase the extensions (custom)   1.WCDMA+GSM Applied to more countries and areas with updated mobile network, TK119-W using WCDMA+GSM helps to acquire location information in a more accurate and rapid way. Automatic transmission from 3G to 2Gnetwork adapts to actual environment.    2.Tele-cut off (petrol / Power) In case that your car is stolen, one solution is to send commands from web/mobile phone to stop the connection of petrol electricity. Track the location and get your car back.     3.Geo-fence Geo-fence is a virtual border that you set up in seconds. When your vehicle enters/exits the restricted border, you would be instantly notified via text or message to tracking platform.     4.Overspeed alert TK119-W allows you to set speed-limit alerts. If the tracker travels over a certain speed, it will send you a text alert. This is useful for tracking a teenage driver, so you can keep them accountable for their driving habits.   5.History Playback History playback Real-time tracking on Platform & APP ,playback track in 90 days     6. ACC detection Update the vehicle’s status quickly and accurately.     7. Dustproof and Waterproof It is IP67 waterproof and dustproof so that it can be protected well for a long time.

Main Specifications
GPS Chip	MTK high sensitivity GPS chip
Antenna	Built-in GPS ceramic antenna; GSM quad-ban antenna
GPS Positioning Accuracy	5m-15m( Depend GPS signal)
LBS Positioning Accuracy	About 200m (Depend Bases Density)
GPS Frequency	L1,1575.42MHz C/A code
Network	WCDMA /EDGE/GPRS
Frequency bands	WCDMA 850/1900/2100MHz
	GSM 850/900/1800/1900MHz
GPRS	Class 12, TCP/IP
LED indicator	GPS- Blue; GSM- Red
Memory	Save 2,000 waypoints
Hot/warm/cold Start	<3s,<15s,<60s
Built-in Battery	90mAh/3.7Vindustrial lithium polymer battery
Standby	2hours
Work Current	<30 mA
Standby Current	<15 uA
Charger	5VDC/1A
IP Waterproof Level	IP67
Dimensions (mm)	87(L)X 41.6(W) X 12(H)
Operating Voltage	9-72V DC
Operating Temperature	-20℃~70℃
Operating Humidity	20%~80%RH
Net Weight	50 g

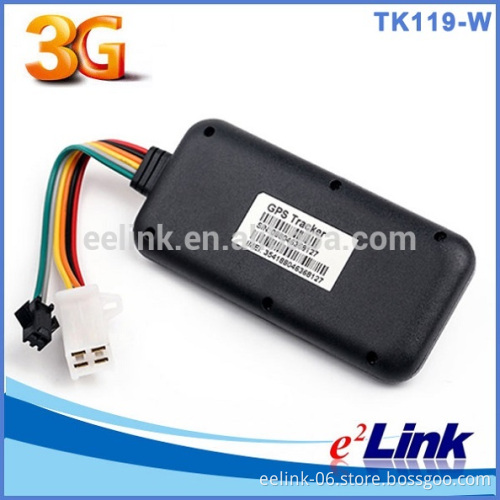

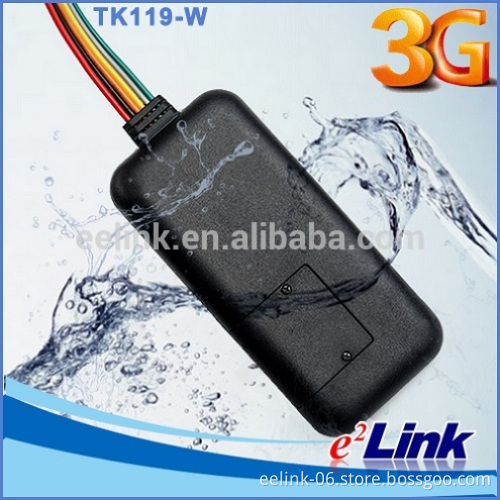

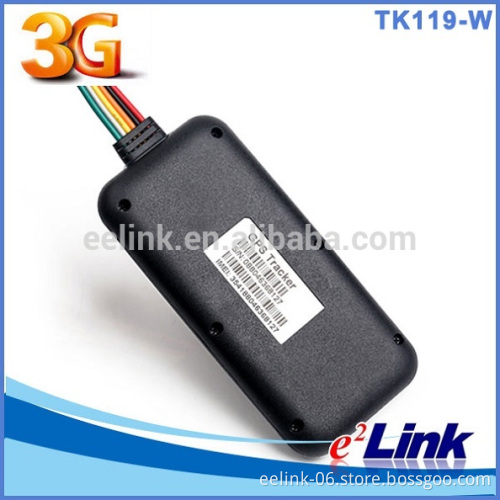

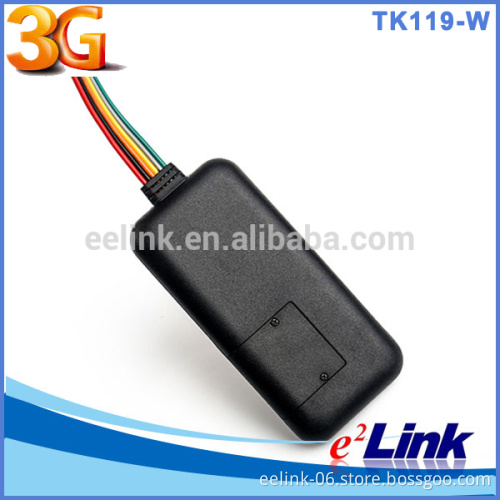

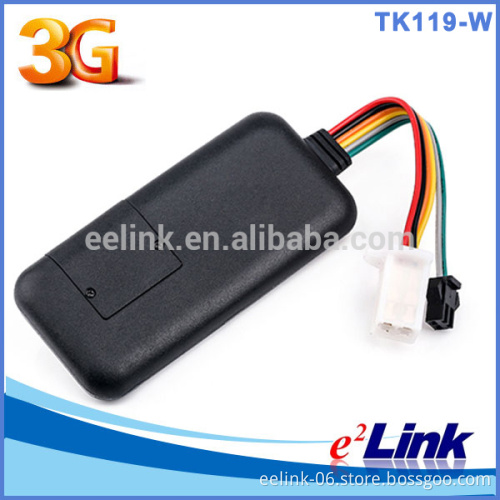

                                                            Products picture
