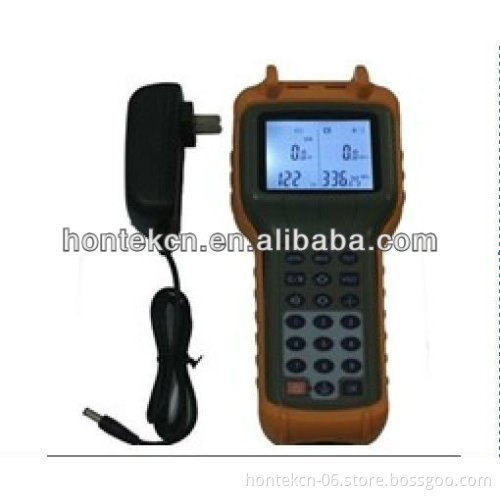

TV Signal Level Meters HSV-110

Specifications TV Signal Level Meters HSV-110

L double channel, slope measurement

L A/V ratio measurement, C/N measurement

                                           TV Signal Level Meters HSV-110       Product features:
L single channel frequency measurement
L double channel, slope measurement
L A/V ratio measurement, C/N measurement
L mains voltage measurement
L digital average power measurement       HSV-110 is a portable signal level meter is a powerful device designed for the CATV engineers and managers. This  device can measure data for every technical indicator of the CATV system with high-resolution color display.. This device is special for its function of analyzing all the technical indicators generated by the signal TV.                                                                Technical Data         Performance index
Frequency range RY110:46 MHZ ~ 870 MHZ RY110D: 5 MHZ ~ 870 MHZ
Channel range Chinese standard channel 1 ~ 56 Chinese supplementary channel Z1 ~ Z43
Frequency accuracy ± 50 * 10 e - 6 (20 °C ± 5 °C)
Resolution 50 KHZ
Measurement bandwidth 280 KHZ ± 50 KHZ
Level measurement range 30 ~ 120 dbuv
Level measurement accuracy + / - 1.5 dB (25 °C ± 5 °C)
Digital average power measurement range 30 ~ 120 dbuv
Digital average power measurement accuracy + / - 1.5 dB (25 °C ± 5 °C)
Resolution of 0.5 dBuV
Detection way peak detection
Input impedance Ω 75
Voltage measurement input range 1-100 vac
Voltage measurement accuracy ± 2 v
Resolution 1 v
Carrier to noise ratio measurement range 20 ~ 50 dbuv
External dimensions 2100 mm * 70 mm * mm
The weight of less than 650 g
Audio output built-in speaker (single frequency mode manual open)
Built-in battery 7.4 V 1100 mah lithium battery
Charging time/working time more than 4 hours/more than 8 hours (audio/LCD backlight closed)       Inquire us! we will provide more detail information of products,professional suggestion according to your situation!!! Anita Shenzhen Hontek Co., Ltd. Web: www.hontek.net Tel:0086-0755-36934393   Our main products as below:   1. FUSION SPLICER: Sumitomo (Type-81C/39/-66/); Fujikura (fsm-60S/60R); Fitel S178A; HSV-6000 2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ7275) 3. POWER METER (PPM-350c, FPM-300, HSV300-P); LIGHT SOURCE (FLS-300, HSV300-L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302) 4. Anritsu site master S331D, S331L, S331E,S332E. 5. Fiber cleaver (CT-30A/FC-6S), adapter, battery, electrode, connector, fiber tool kits 6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc.. 7.Maintainance and repair ,calibration service for the EXFO, Sumitomo, Fujikura, Anritsu.
