Specifications HSV-128a portable signal level meter is a powerful device designed for the CATV engineers and managers.

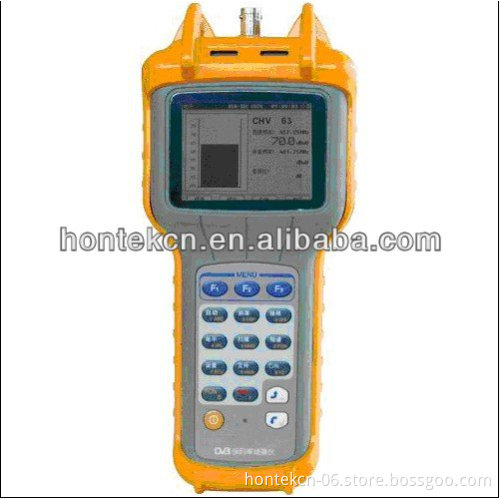

professional and high quality TV Signal Level Meters HSV-128 HSV-128 is a portable signal level meter is a powerful device designed for the CATV engineers and managers. This device can measure data for every technical indicator of the CATV system with high-resolution color display.. This device is special for its function of analyzing all the technical indicators generated by the signal TV.
Technical Data Frequency/ Channel Frequency range: 5(47)MHz ~ 870MHz Channel range:??? Frequency resolution: 10 KHz Measurement bandwidth: 280KHz Level Measurement Range: 25dBuV ~ 120 dBuV Accuracy: ±2dB Resolution: 0.1 dB Scan: peak value demodulation Input impedance: 75Ω Carrier-Noise Ratio(C/N) Input range: 70dBuV—105dBuV Accuracy: ±2 dBuV Voltage Measurement Input range: 10 ~ 80V(AC/DC) Accuracy: ±2V Resolution: 0.1V Technical indicators above worked in temperature 25°C Other Dimensions:215mm×93mm×48mm Net Weight: < 550g Temperature: -10°C ~ 45°C Display: 320 X 240 TFT LCD Audio Output: Build-in speaker Power DC supply: 7.2V rechargeable battery AC Supply: AC220V/50Hz ±10% Working time: >4hrs (full charged battery) Inquire us! we will provide more detail information of products,professional suggestion according to your situation!!! Anita Shenzhen Hontek Co., Ltd. Web: www.hontek.net Tel:0086-0755-36934393 Our main products as below: 1. FUSION SPLICER: Sumitomo (Type-81C/39/-66/); Fujikura (fsm-60S/60R); Fitel S178A; HSV-6000 2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ7275) 3. POWER METER (PPM-350c, FPM-300, HSV300-P); LIGHT SOURCE (FLS-300, HSV300-L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302) 4. Anritsu site master S331D, S331L, S331E,S332E. 5. Fiber cleaver (CT-30A/FC-6S), adapter, battery, electrode, connector, fiber tool kits 6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc.. 7.Maintainance and repair ,calibration service for the EXFO, Sumitomo, Fujikura, Anritsu.
professional and high quality TV Signal Level Meters HSV-128 HSV-128 is a portable signal level meter is a powerful device designed for the CATV engineers and managers. This device can measure data for every technical indicator of the CATV system with high-resolution color display.. This device is special for its function of analyzing all the technical indicators generated by the signal TV.
Technical Data Frequency/ Channel Frequency range: 5(47)MHz ~ 870MHz Channel range:??? Frequency resolution: 10 KHz Measurement bandwidth: 280KHz Level Measurement Range: 25dBuV ~ 120 dBuV Accuracy: ±2dB Resolution: 0.1 dB Scan: peak value demodulation Input impedance: 75Ω Carrier-Noise Ratio(C/N) Input range: 70dBuV—105dBuV Accuracy: ±2 dBuV Voltage Measurement Input range: 10 ~ 80V(AC/DC) Accuracy: ±2V Resolution: 0.1V Technical indicators above worked in temperature 25°C Other Dimensions:215mm×93mm×48mm Net Weight: < 550g Temperature: -10°C ~ 45°C Display: 320 X 240 TFT LCD Audio Output: Build-in speaker Power DC supply: 7.2V rechargeable battery AC Supply: AC220V/50Hz ±10% Working time: >4hrs (full charged battery) Inquire us! we will provide more detail information of products,professional suggestion according to your situation!!! Anita Shenzhen Hontek Co., Ltd. Web: www.hontek.net Tel:0086-0755-36934393 Our main products as below: 1. FUSION SPLICER: Sumitomo (Type-81C/39/-66/); Fujikura (fsm-60S/60R); Fitel S178A; HSV-6000 2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ7275) 3. POWER METER (PPM-350c, FPM-300, HSV300-P); LIGHT SOURCE (FLS-300, HSV300-L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302) 4. Anritsu site master S331D, S331L, S331E,S332E. 5. Fiber cleaver (CT-30A/FC-6S), adapter, battery, electrode, connector, fiber tool kits 6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc.. 7.Maintainance and repair ,calibration service for the EXFO, Sumitomo, Fujikura, Anritsu.
