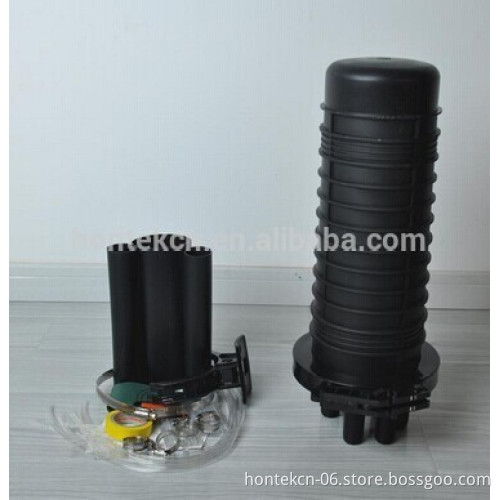

Optic Fiber Splice Closure fiber splice closure optical

Optic Fiber Splice Closure fiber splice closure optical  1.        Application      Main technical Specifications   External Size: (length×width×height) 420 × 150× 110mm   weight:1.3kg  optical fiber winding radius: ≥40mm  extra loss of fiber tray:≤0.01dB   fiber length left in tray:≥1.6m fiber capacity: single: 96cores, tape-shaped: 192cores  lateral pressure-resistance: ≥2000N / 10cm   shock-resistance:≥20N.m     . packing list:

1	joint case main body		1 piece
2	fiber-melting tray		1 piece
3	frame
4	Melted fiber pack	melting pipe housing	12 stick
		stainless reinforced core stick	12 stick
		label	1-48
		nylon tie	5 stick
		sand paper	1 strip
5	stainless steel accessories	M5×30 bolt and nut	2 sets
		Hitcher	2 pcs
		M8×25 stainless steel bolt	8 pcs
		M8×35 stainless bolt	2 pcs
		6mm inside hexagon spanner	1 pc
6	Plastics accessories kit	Block	2 pcs
		cable loop 12.5	8 pcs
		cable loop 17	8 pcs
		cable loop 20	8pcs
		cable loop 22	8pcs
7	adhesive tape		1coil
8	sealed strip unit		1 piece
