Sumitomo Type-81C/Z1C fusion splicing machine/fusion splicer price

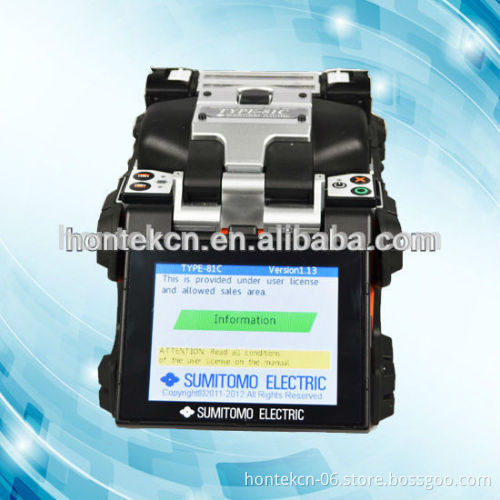

Sumitomo Type-81C/Z1C fusion splicing machine/fusion splicer price     NOW IN STOCK!   Contact information Mobile:0086-13823128817 Tel:0086-755-36934393 Fax: 0086-755-33503470 Skype:kitty.hsv              Features of Japan fiber optic splicing machine Sumitomo fusion splicer TYPE 81C :
Downsized by 43% from conventional model
2.1kg weight with battery
Ultra fast splicing(7sec.)
Ultra fast heating(28sec.)
G.657 fiber auto splicing function
IP52 rating and 76cm drop on 5 faces
Automatic arc calibration
Touch screen operation
Universal clamp for 250µm,900µm tight and loose buffer fiber
User selectable heater clamp operation
Support bi-directional splicing operation
Equipped with onboard training vedio
Upgrades software via internet    Specification of   Japan fiber optic splicing machine Sumitomo fusion splicer TYPE 81C:

Standard performance	Splice loss (typical)	SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB
	Splicing cycle time	7sec.
	Heating cycle time (typical)	28sec.
	Splice & Heat cycles	Approx.200
	Fiber view & magnification	Two CMOS cameras observation 320X (zoom:700X) for X or Y single axis view, 88X for both X & Y dual axis view
Programs	Splicing programs	Max.300
	Heating programs	Max.100
Function	Loss estimation	Provided
	Splice image capture/ Splice data storage	64 images/10,000 splice data
	Proof test	1.96N (200gf)
	Attenuation splicing	0.1dB to 15dB in 0.1dB increments
	Dual automatic independent heaters	Provided (US patent 7,412,146)
	Automatic arc calibration	Automatically compensates for environmental condition changes
	Remote interactive maintenance	Provided
Size/Weight	Size	120(W)x154(D)x130(H)mm (without anti-shock rubber)
	Weight	1.8kg (without battery), 2.1kg (with battery)
	Monitor	4.1" touch screen color LCD display
Terminals	DC output	DC12V (for JR-6)
	USB port	USB 2.0 (mini-Btype)
	Storage media	SD/SDHC memory card
Power supply	AC input	100~240V, 50/60Hz (ADC-1430)
	DC input	10~15V
	Battery module	Li-ion 11.1V, 4,600mAh (BU-11)
Electrode life	3,000 arc discharges

  accessaries Include: a) main unit, b) AC adapter and Charger Cable, c) Battery, d) Cooling Tray, e) Carrying case, f) Precision Fiber Optic Cleaver, FC-6S, g) AC Power Cord, h) Operation manual , i)USB cable, 1-Year Warranty.    Be free to contact kitty if any questions You can also log onto www.hontek.net for more information!
