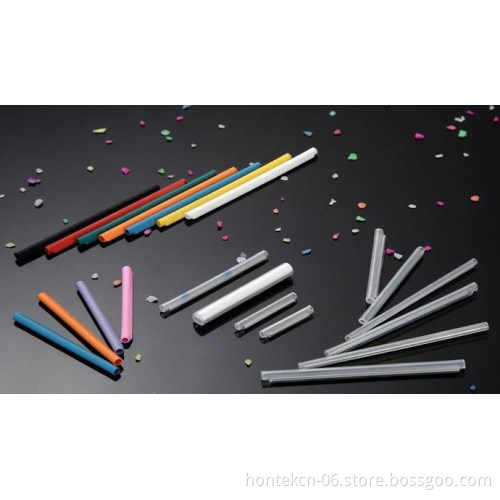

20mm/45mm/60mm Fiber optic fusion splice protector and sleeve hot shrink tube

Specifications Fiber optic fusion splice protector and sleeve hot shrink tube

high quality

production cycle time: 2 days

20mm/45mm/60mm Fiber optic fusion splice protector and sleeve hot shrink tube         Features          Consist of cross-linked polyolefin, hot fusion tubing and stainless reinforced steel rod          Keep optical transmission performance of optical fiber           Provide safe protection to optical fiber splicing           Easily use and avoid any damage to the optical fiber during installation          Clear sleeve makes it easy to detect splice before shrinkage          Sealing structure provides good performance to the splicing in the environment with temperature and humidity   Operating Temperature : -45 – 100 °C  Shrinking Temperature Range: 90 - 110 °C Packing : 100 Pcs/Bag     Technical Data :

Properties	Test Method	Typical Data
Tensile Strength(MPa)	ASTM D 2671	18
Ultimate Elongation(%)	ASTM D 2671	700
Density(g/cm2)	ISO R1183D	0.94
Dielectric Strength (KV/mm)	IEC 243	20
Dielectric Constant	IEC 243	2.5
Longitudinal Change(%)	ASTM D 2671	+5

      Dimension :

PN	Steel Rod		Fusion Tube		Heat Shrink Tube	Device
	O.D.	Length	I.D.	Length	Length	O.D. (after shrink)
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
APD-450501	0.5*45mm	45±1	0.5±0.1	45±1	45±1	1.6±0.1
APD-450801	0.8*45mm	45±1	1.1±0.1	45±1	45±1	2.0±0.1
APD-451001	1.0*45mm	45±1	1.1±0.1	45±1	45±1	2.3±0.1
APD-451201	1.2*45mm	45±1	1.3±0.1	45±1	45±1	2.5±0.1

        Payment terms T/T,Western union,Money Gram,LC.T/T in advance.     Contact information Tel:0086-755-36934393 Fax: 0086-755-33503470 Mobile:0086-13823128817 Skype:kitty.hsv
