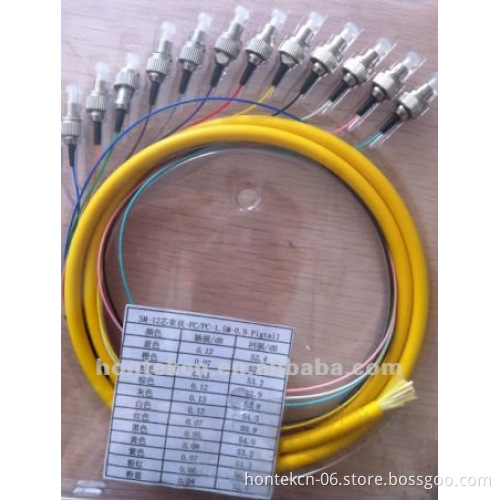

om3 sc apc/fc apc/upc /apc12 core fiber optic pigtail/optical fiber patchcord

Specifications om3 sc apc/fc apc/upc /apc12 core fiber optic pigtail/optical fiber patchcord

Low insertion loss,

High return losss,

om3 sc apc/fc apc/upc /apc12 core fiber optic pigtail/optical fiber patchcord kitty skype: kitty.hsv   Application: * Optical fiber communications system; * Optical fiber access networks; * Optical fiber CATV; * Optical fiber test equipments; * Optical fiber data coummunication;       Features:   Low insertion loss and high return losss,  Excellent reliability and stability,  Various types of optical connectors available,   The fusion and distribution of multi-fiber in ODF available

Specifications
Test Item					Test Conditions				Parameter(dB)
Optical		Insertion loss(IL)			1310nmLED				less than0.3(typical:0.1)
Environmental (the max change of insertion loss)		Return loss(RL)			1310nmLD				PCover40,UPCover50,APCover60
		High Temperature			+85°C,168 hours				0.2
		Temperature Cycle			-40°C~+75°C,21 cycles,168 hours				0.2
		Humidity & heat(stable situation)			75°C,95%R.H,168 hours				0.2
		Humidity & Heat Cycle			-10°C~+65°C,95%R.H,21 cycles,168 hours				0.2
Mechanical (the max change of insertion loss)		Vibration			10Hz~55Hz,1.5mm(p-p)				0.1
		Bend			0.9kgf,-90° 100 cycles				0.1
		Torsion			2.5kgf,10 time/min,±180°,200 times				0.1
		Tensile Strength			90N,10min				0.1
		Failing			1.5m High,8 Times				0.2
		Repeatability			10 Times				0.1
		Durability			over500 Times				0.2
