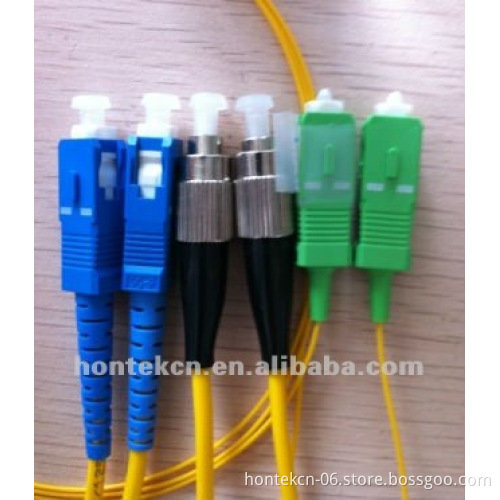

high quality of sc upc mm optical fiber patch cord

Specifications high quality of sc upc mm optical fiber patch cord

Low insertion loss

Low return loss

various connector type

high quality of sc upc mm optical fiber patch cord   Patch Cords (Simplex and Duplex) kitty skype: kitty.hsv    All patch cords undergo stringent testing for both insertion loss and return loss at the factory before shipment to ensure that only quality product is delivered to the customer. ANAT offers ultra physical contact (UPC) polish on the LC,SC, FC,ST ,E2000 and MU connector styles.   Angled polish is available on the LC connector ,FC connector ,E2000 connector and the SC connector styles. Angled polish should be used in applications that require better control of return loss. ANAT has tight tolerances regarding the rotation of the ferrule to maintain low insertion loss values

Connector	LC/UPC Simplex	LC/APC Simplex	LC/UPC Duplex	LC/APC Duplex
Housing colour	Blue (singlemode)	Green	Blue (singlemode)	Green
	Beige (multimode)		Beige (multimode)
Boot colour	White	Green	White	Green
Heatshrink tubing	Yellow (singlemode)	Yellow	Yellow&white	Yellow&white
	White (multimode)
Ferrlue	1.25mm ceramic	1.25mm ceramic Anlge 8	1.25mm ceramic	1.25mm ceramic Anlge 8
Insertion loss	<0.3dB @1310nm	<0.3dB @1310nm	<0.3dB @1310nm	<0.3dB @1310nm
	<0.3dB @850nm		<0.3dB @850nm
Return loss	>55dB @1310nm	>65dB @1310nm	>55dB @1310nm	>65dB @1310nm
	>35dB @850nm		>35dB @850nm
Compliance	IEC 61754-20	IEC 61754-20	IEC 61754-20	IEC 61754-20
