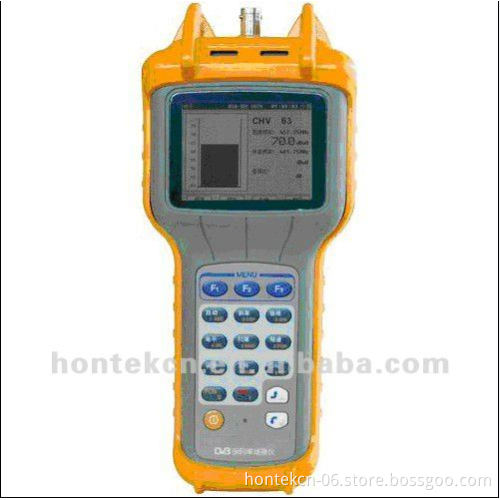

high quality digital signal Field Strength Meter
- Delivery Time:
- 3 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
TV Field Intensity applies to the need of the television and cable television engineering
digital signal Field Strength Meter Main technical parameters:
Performance | Index |
frequency scope | 48MHz~870MHz |
Channel scope | China standard channels 1~56 China subjoin channels Z1~Z43 |
frequency precision | ±50ppm(25±5) |
resolution | 50KHz |
bandwidth | 280KHz±50KHz |
frequency pace | 50KHz,100KHz,1MHz,10MHz,100MHz |
level measurement scope | 25~120dBuV |
level measurement precision | ±1.5dB (25±5) |
scope of digital mean power measuring | 30~115dBuV |
precision of digital mean power measuring | ±1.5dB (25±5) |
resolution | 0.1dBuV |
way of demodulation | Peak value demodulation |
input resistance | 75Ω |
input range of voltage measurement | 0~100VAC |
precision of voltage measurement | ±2V |
resolution | 1V |
CNR measurement scope | 75~105dBuV |
dimension | 160mm×130mm×65mm |
net weight | <600g |
audio output | built-in speaker |
battery | 5# alkaline battery, Ni-Mh rechargeable battery and Li-polymer battery(choose one) |
charging time | More than 6 hours (5# alkaline battery cannot be charged) |
