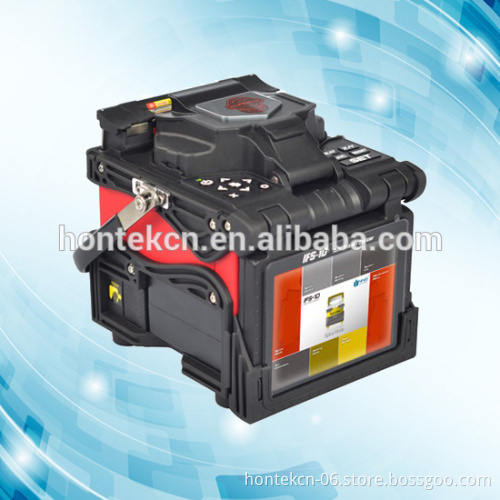

Original ARC INNO IFS-10 Fiber Optical Fusion Splicer, IFS-10 Fiber optic fusion Splicing Machine with VF-78 cleaver

Splicing Method

Core alignment

Applicable fiber

SM(ITU-TG.652),MM(ITU-TG.651),DS(ITU-T G.653),NZDS(ITU-T G.655)

Average loss

SM(0.02dB),MM(0.01 dB),DS(0.04 dB),NZDS(0.04 dB)

Return loss

>>60 dB

Splice time

SM fusion average 9s

Cleaved length

The fiber which coat-diameter is less than 0.25mm:8-16mm

The fiber which coat-diameter is lager than 0.25mm

least 16mm

Operating environment

elevation 0-5000meter,95% relative humidity,-10—50C

Magnification

XY style: 150power

X/Y :300 power

Monitor

2CCD camera system,5inch LCD

Splice Programs

40 user mode,10 factory preset mode

Coating Diameter

100-1000um

Clading Diameter

80-150um

Splice memory

Can save 2000 record

Fiber Display

X/Y or XY,single X,Y

Proof test

2N(standard)

Heating programs

Preset 10kind heating mode

Heating time

FP-03 typical heating time 30s

Protection sleeve

60mm,40mm

Battery

Typical fusion 350 times

Power supply

AC 100-240V input or, DC 12-15V

Data output

USB master device and AV

Wind protection

The max wind speed 15m/s

size

168x145x160mm

weight

2.8Kg
