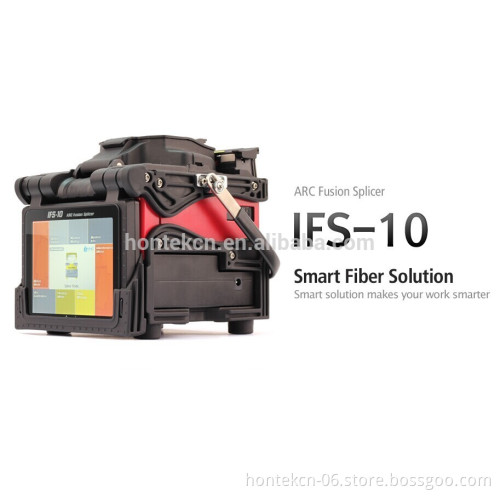

FTTX solutions INNO optical fiber fusion splicer IFS-10

Specifications 2.2kg weight (without battery)

Splicing method: DACAS

(Digital Analysis Core Alignment System)

Harsh weather conditions adapt

    FTTX solutions INNO optical fiber fusion splicer  IFS-10     Contact information Mobile:0086-13823128817 Tel:0086-755-36934393 Fax: 0086-755-33503470 Skype:kitty.hsv         Features:       2.2kg weight (without battery)    Splicing method: DACAS (Digital Analysis Core Alignment System)    Harsh weather conditions adaptability    Friendly smart GUI    Large battery capacity: 350 Splice and Heat    Quick optimize menu    High precision splicing    USB master port, easy to upgrade software    Operate in Bi-directional view    Specifcitions:

Splicing Method	Core alignment
Applicable fiber	SM(ITU-TG.652),MM(ITU-TG.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Average loss	SM(0.02dB),MM(0.01 dB),DS(0.04 dB),NZDS(0.04 dB)
Return loss	>>60 dB
Splice time	SM fusion average 9s
Cleaved length	The fiber which coat-diameter is less than 0.25mm:8-16mm
The fiber which coat-diameter is lager than 0.25mm	least 16mm
Operating environment	elevation 0-5000meter,95% relative humidity,-10—50C
Magnification	XY style: 150power
	X/Y :300 power
Monitor	2CCD camera system,5inch LCD
Splice Programs	40 user mode,10 factory preset mode
Coating Diameter	100-1000um
Clading Diameter	80-150um
Splice memory	Can save 2000 record
Fiber Display	X/Y or XY,single X,Y
Proof test	2N(standard)
Heating programs	Preset 10kind heating mode
Heating time	FP-03 typical heating time 30s
Protection sleeve	60mm,40mm
Battery	Typical fusion 350 times
Power supply	AC 100-240V input or, DC 12-15V
Data output	USB master device and AV
Wind protection	The max wind speed 15m/s
size	168x145x160mm
weight	2.8Kg

  Standard Accessories:   1. IFS-10 Splicer 2. High Precision Cleaver               VF-78 3. Battery Pack                              LBT-20 4. AC Adapter/Battery Charger    JS-126300-X 5. Power Cable                             ACC-25 6.  Extra Electrodes                      E-50 7. Carrying Case                          NBX-35 8. Cooling Tray                              CG-22 9. Cigarette Lighter Cable              CJ-11 10. RS-232 Cable                           RS-11         Payment terms T/T,Western union,Money Gram,LC.T/T in advance.     Company Information  Shenzhen Hontek Co., Ltd. is a professional distributor and product developer for telecom test equipments. We are the sole agency of Comway from California. USA. and also agent for Fujikura, Sumitomo fusion splicers, EXFO, JDSU, Yokogawa test equipments, Anritsu site master. At the same time, we have our own factory producing the fiber testers, patch cords, cables and fiber accessories.   Our customers spread all of the world due to our high quality products with competitive price. Moreover, we have some agents in many countries. In china market our customer include China Telecom, factories, Huawei, ZTE, BYD, Military and many engineering companies.       After-Sales Service
